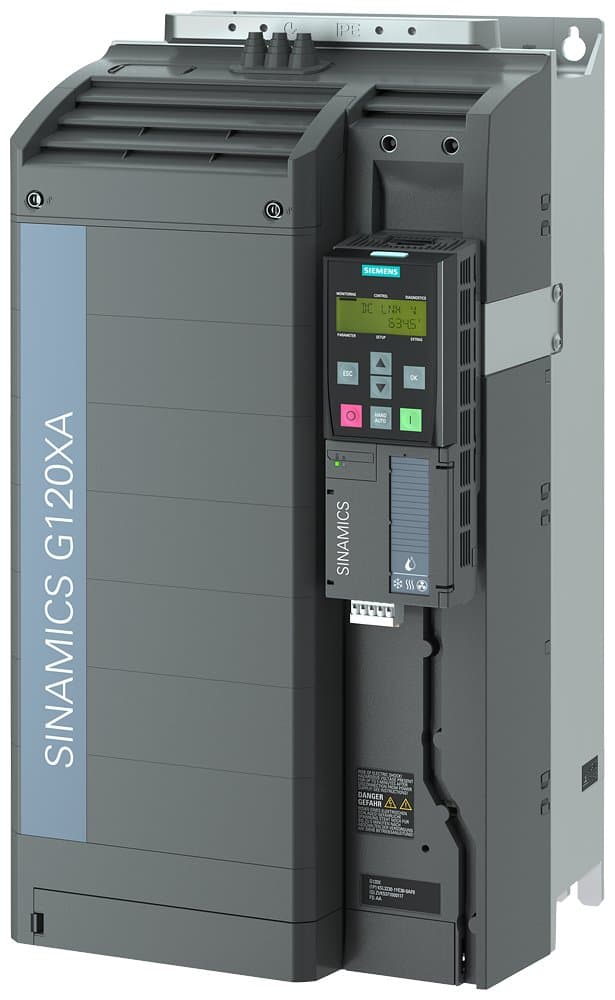

Product Model
6SL3220-1YD40-0CB0
Key Features
- 1Precise motor control for smooth acceleration and deceleration.
- 2Suitable for a wide range of industrial applications including pumps, fans, and conveyors.
- 3High-performance capabilities with advanced motor control features.
- 4Compatible with Siemens programming software for detailed configuration.
- 5Energy-efficient operation with potential savings of up to 60% in electricity costs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 237mm | Height | 551mm |
| Width | 275mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSE | Filter | Integrated A-C3 Class Filter |
| Motor Power | 55kW | Rated Voltage | 380-440V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3220-1YD40-0CB0 |
Specifications may be subject to change without notice
