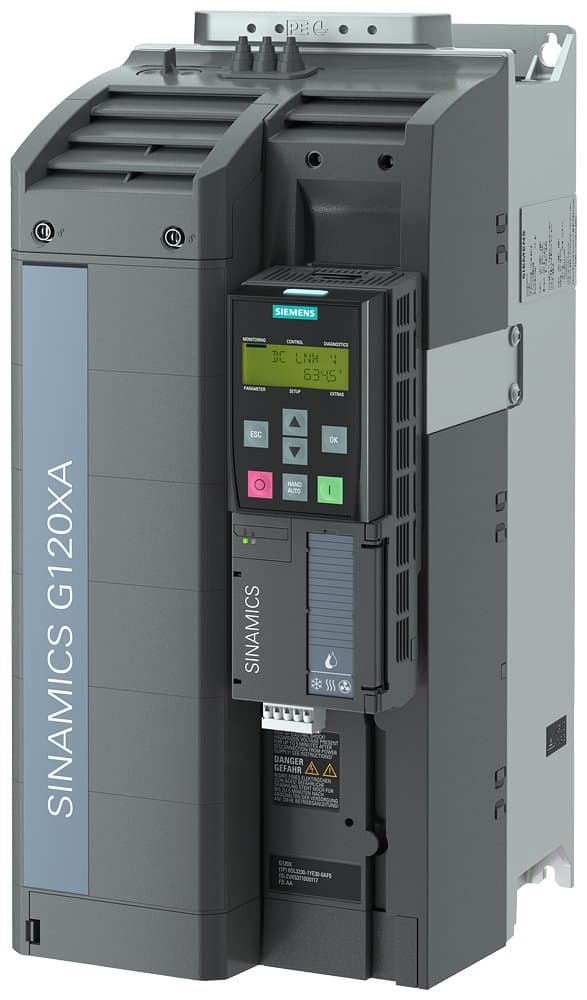

Product Model
6SL3220-1YD34-0CB0
Key Features
- 1High Power Capacity: Rated for 30KW, suitable for demanding applications.
- 2Advanced Filtration: C3 stage filter ensures efficient and reliable performance.
- 3Versatile Applications: Ideal for fan pump systems in water treatment, HVAC, paper making, and environmental protection.
- 4Integrated Fieldbus: Supports Modbus, USS, and BACnet for seamless communication.
- 5Durable Design: IP20 protection class for robust operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 237mm | Height | 472mm |
| Width | 200mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSD | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 30kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-1YD34-0CB0 |
Specifications may be subject to change without notice
