Product Model

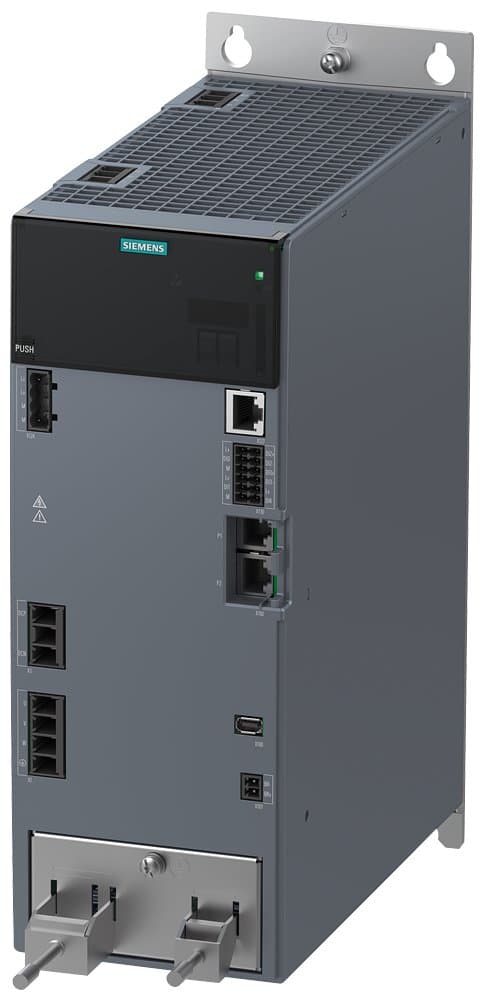

6SL3210-5HE13-5UF0
Key Features
- 1High power rating of 3.5 kW for demanding applications.
- 2Compatible with 200-480 V, 3-phase supply voltage.
- 3Compact design with a current rating of 12.5 A.
- 4Integrated with advanced communication protocols like PROFINET and PROFIBUS.
- 5Manufactured in Germany for high-quality standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 223 mm | Height | 322 mm |
| Width | 105 mm | Digital Outputs | 0 |
| Digital Inputs | 5 | Protection Rating | IP20 |
| Dimensions | FSC | Output Phases | 3 |
| Input Phases | 3 | Motor Power | 3.5 kW |
| Rated Voltage | 200-480 V | Product Type | Variable Frequency Drive |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 6SL3210-5HE13-5UF0 |
Specifications may be subject to change without notice
