Product Model

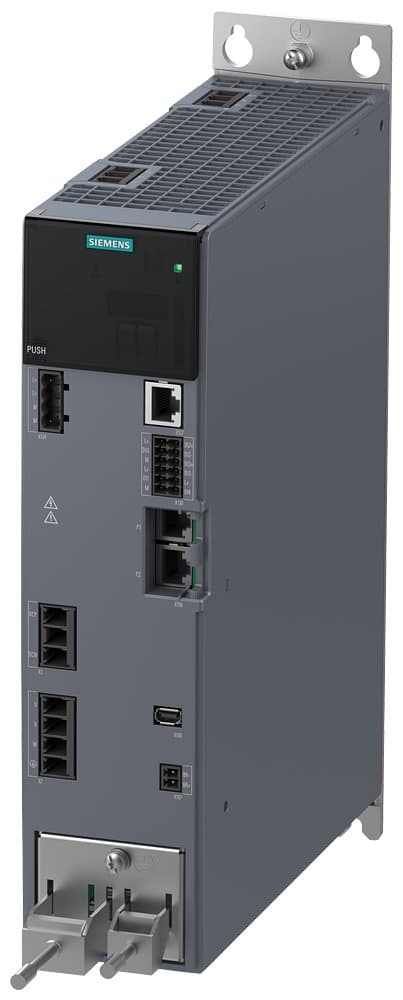

6SL3210-5HE12-0UF0
Key Features
- 1High efficiency with variable-speed operation for significant energy savings.
- 2Reliable performance with a wide input voltage range (200-480 V 3AC).
- 3Compact design with a robust IP20 degree of protection.
- 4Integrated system configuration for seamless integration with other Siemens components.
- 5Global pre-sales and after-sales services from Siemens for comprehensive support.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 223mm | Height | 322mm |
| Width | 70mm | Digital Outputs | 0 |
| Digital Inputs | 5 | Protection Rating | IP20 |
| Dimensions | FSB | Output Phases | 3 |
| Input Phases | 3 | Motor Power | 2KW |
| Rated Voltage | 200-480V | Product Type | Variable Frequency Drive |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 6SL3210-5HE12-0UF0 |
Specifications may be subject to change without notice
