Product Model

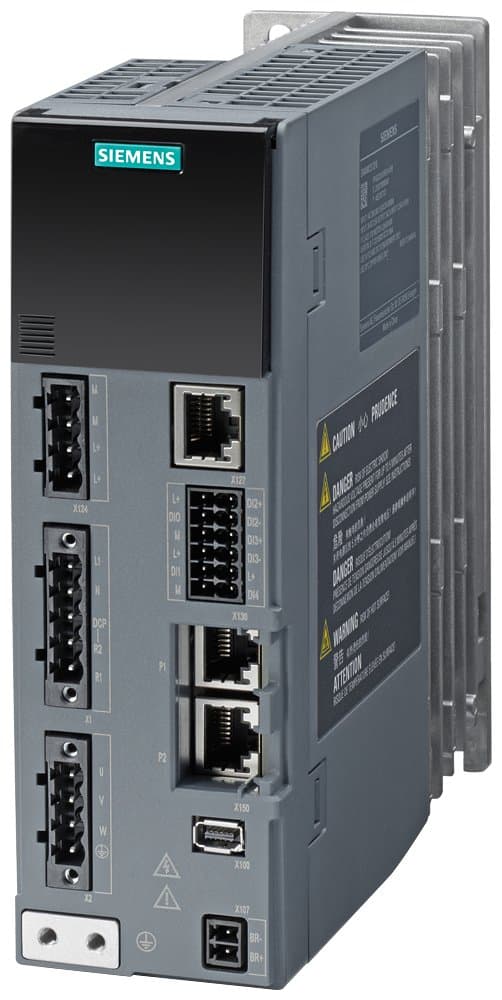

6SL3210-5HB10-4UF0
Key Features
- 1High Precision Control: The 6SL3210-5HB10-4UF0 offers precise control with a high-resolution encoder for fast and accurate motion control.
- 2Energy Efficiency: Designed to reduce energy consumption, this servo drive is perfect for applications where energy savings are crucial.
- 3Robust Design: Built with a robust frame size B and IP20 protection, it ensures reliable operation in various industrial environments.
- 4Wide Voltage Range: Compatible with 200-240 VAC and 45-66 Hz, making it versatile for different industrial settings.
- 5Extended Warranty: Includes a 2-year warranty from Radwell, providing peace of mind for your investment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 172.4mm | Height | 170mm |
| Width | 55mm | Digital Outputs | 0 |
| Digital Inputs | 5 | Protection Rating | IP20 |
| Dimensions | FSB | Output Phases | 3 |
| Input Phases | 1 | Motor Power | 0.4kW |
| Rated Voltage | 200-240V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | EAR99H | AL | N |
| Model Number | 6SL3210-5HB10-4UF0 |
Specifications may be subject to change without notice
