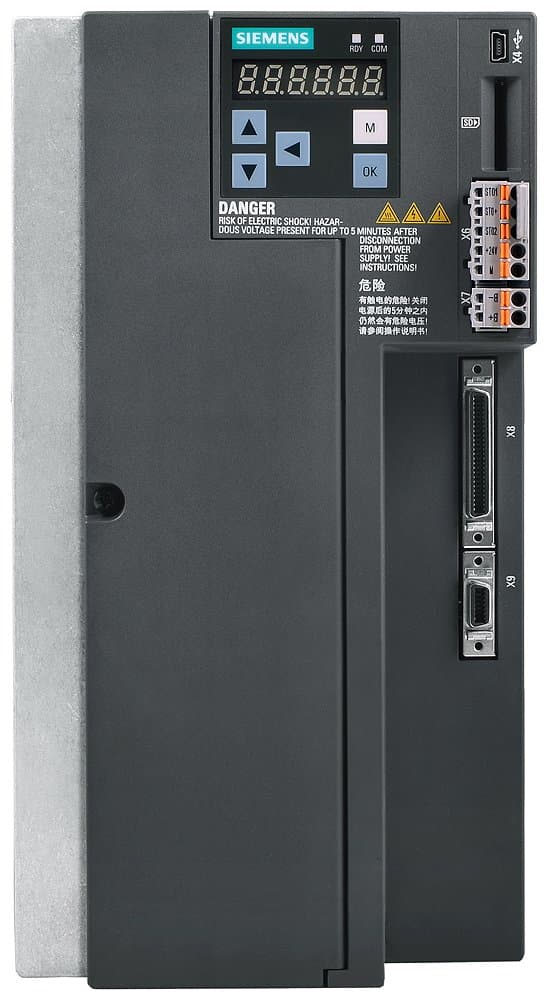

Product Model
6SL3210-5FE17-0UA0
Key Features
- 1Optimized servo performance for dynamic motion control.
- 2Easy to commission with plug & play functionality.
- 3Integrated real-time auto tuning for enhanced accuracy.
- 4High positioning accuracy with pulse train input up to 1 MHz.
- 5Seamless integration with SIMATIC PLC control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 240mm | Height | 260mm |
| Width | 140mm | Digital Outputs | 6 |
| Digital Inputs | 10 | Protection Rating | IP20 |
| Size | FSC | Input Phases | 3 |
| Filter | No Built-in Filter | Rated Output Current | 13.2A |
| Motor Power | 7.0KW | Rated Voltage | 380-480V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FE17-0UA0 |
Specifications may be subject to change without notice
