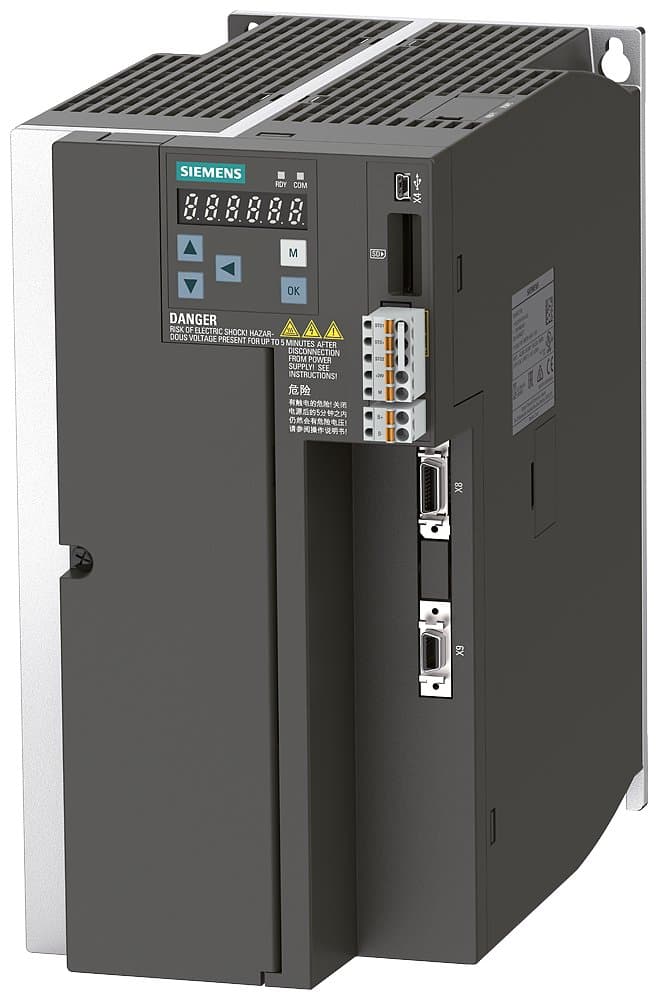

Product Model
6SL3210-5FE15-0UF0
Key Features
- 1High-performance motor control with PROFINET interface for seamless communication.
- 2Robust design with IP20 protection, ensuring reliability in harsh industrial environments.
- 3Compatible with a wide range of motors, including 5.0 kW options.
- 4Advanced safety features including warning notices and safety instructions for safe operation.
- 5Easy commissioning and parameterization through the basic operator panel (BOP).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 240mm | Height | 260mm |
| Width | 140mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Dimensions | FSC | Input Phases | 3 |
| Filter | No built-in filter | Rated Output Current | 12.6A |
| Motor Power | 5.0kW | Rated Voltage | 380-480V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FE15-0UF0 |
Specifications may be subject to change without notice
