Product Model

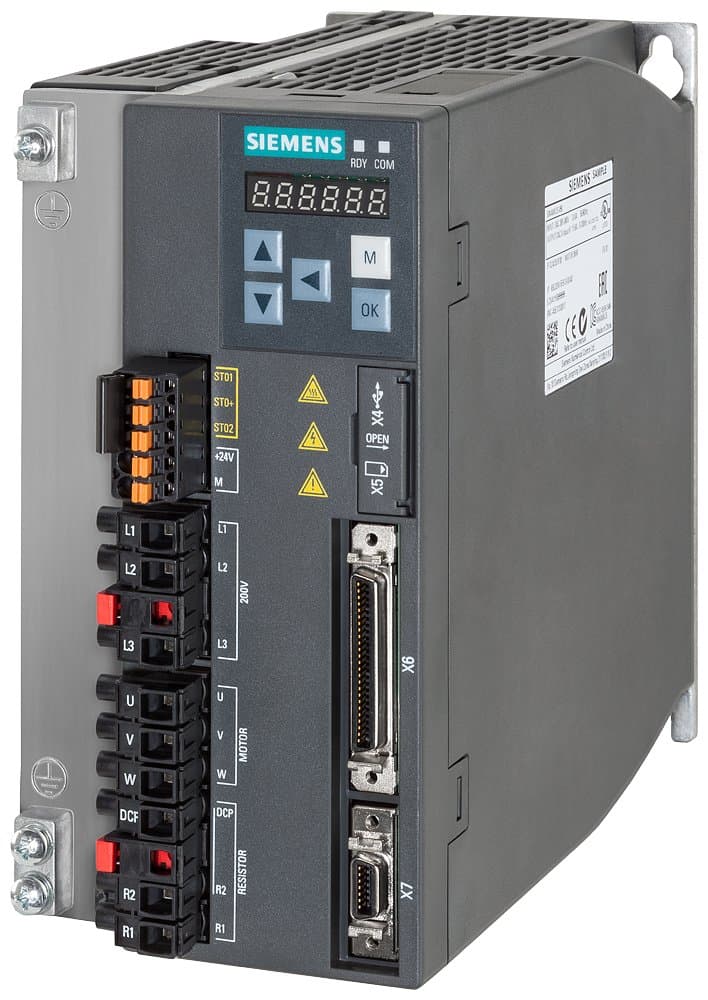

6SL3210-5FB12-0UA0
Key Features
- 1High-Performance Motor Control: The 6SL3210-5FB12-0UA0 is designed for precise motor control, ensuring optimal performance in industrial applications.
- 2Robust Construction: Built with a durable design, this drive offers IP20 protection, making it suitable for harsh industrial environments.
- 3Versatile Power Supply: Compatible with input voltages of 200-240 V, 3-phase, with a power rating of 2 kW.
- 4Advanced Safety Features: Equipped with safety functions like STO (Safe Torque Off) and SIL 2 compliance for enhanced safety.
- 5Easy Integration: Compatible with various control systems, including PLCs like SIMATIC S7-1200 and S7-1500, for seamless integration into industrial setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 195mm | Height | 170mm |
| Width | 95mm | Digital Outputs | 6 |
| Digital Inputs | 10 | Protection Rating | IP20 |
| Dimensions | FSD | Input Phases | 3 |
| Filter | No Built-in Filter | Rated Output Current | 11.6A |
| Motor Power | 2KW | Rated Voltage | 200-240V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FB12-0UA0 |
Specifications may be subject to change without notice
