Product Model

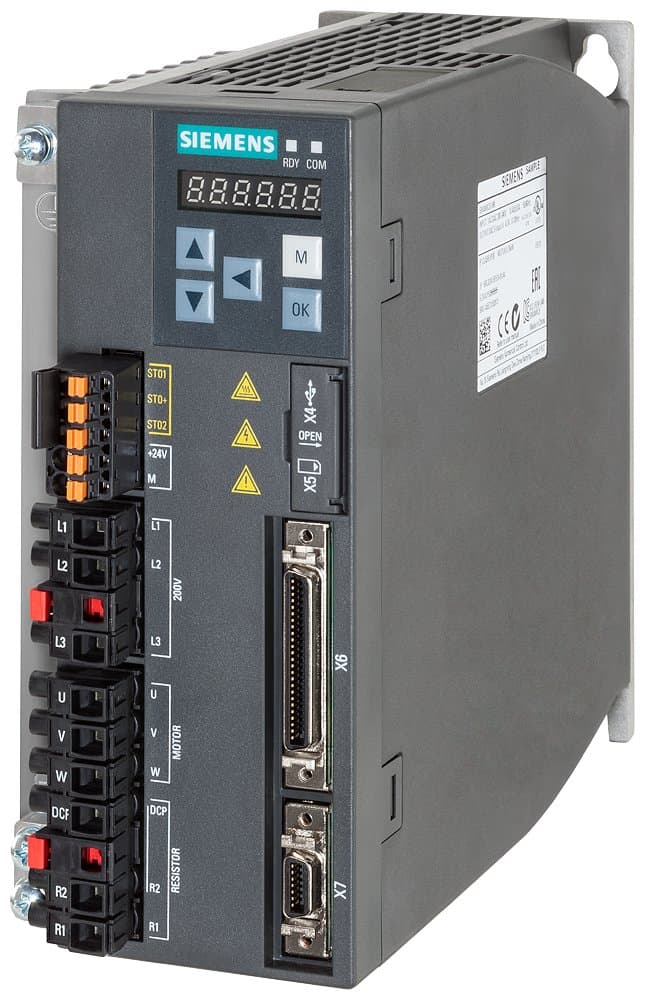

6SL3210-5FB11-0UA1
Key Features
- 1Robust Input Voltage Range: 200-240 V 3-P, -15%/+10% with 7.0 A.
- 2Versatile Output Voltage: 0 – Input, 6.3 A, 0-330 Hz.
- 3High-Quality Motor Control: 1 kW motor support for precise performance.
- 4Comprehensive Warranty Options: Available with 2-year warranty from Classic Automation.
- 5Advanced Diagnostic Tools: Functional testing and repair services for optimal reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 195mm | Height | 170mm |
| Width | 95mm | Digital Outputs | 6 |
| Digital Inputs | 10 | Protection Rating | IP20 |
| Dimensions | FSD | Input Phases | 3 |
| Filter | No Built-in Filter | Rated Output Current | 6.3A |
| Motor Power | 1KW | Rated Voltage | 200-240V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FB11-0UA1 |
Specifications may be subject to change without notice
