Product Model

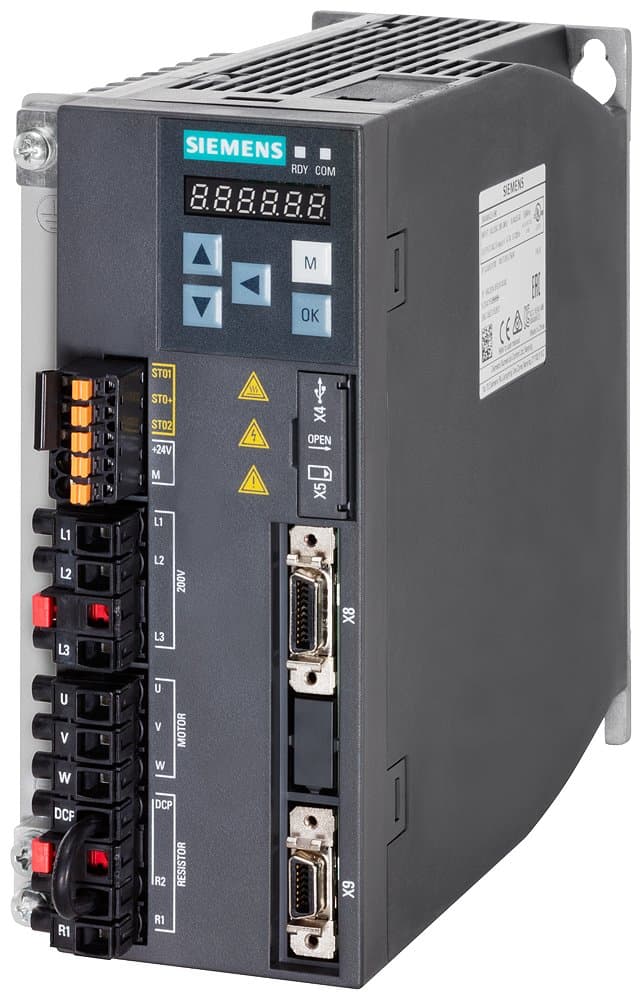

6SL3210-5FB10-8UF0
Key Features
- 1The 6SL3210-5FB10-8UF0 offers precise control over motors, ensuring high accuracy and reliability in industrial applications.
- 2Equipped with PROFINET, this servo drive facilitates seamless communication and integration with other industrial devices.
- 3Operates within a wide input voltage range of 200-240 V 1/3-phase AC, providing flexibility in various industrial settings.
- 4Delivers a robust 0.75 kW motor power, making it suitable for demanding industrial tasks.
- 5Features an IP20 degree of protection, ensuring safe operation in various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 195mm | Height | 170mm |
| Width | 80mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Size | FSC | Input Phases | 1 |
| Filter | No Built-in Filter | Rated Output Current | 4.7A |
| Motor Power | 0.75kW | Rated Voltage | 200-240V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FB10-8UF0 |
Specifications may be subject to change without notice
