Product Model

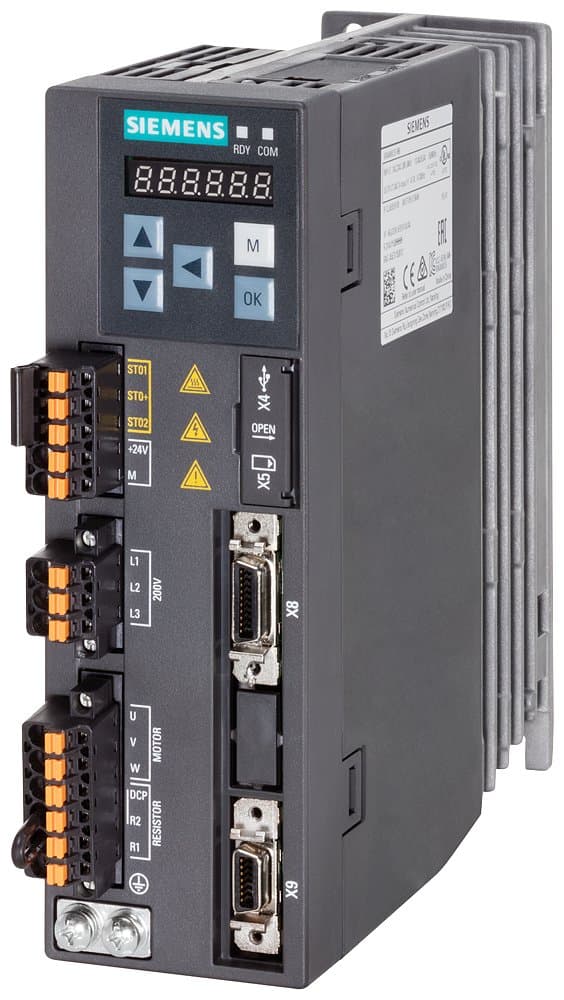

6SL3210-5FB10-4UF1
Key Features
- 1High precision control with position feedback for precise regulation.
- 2Wide operating temperature range from 0°C to +45°C for safe industrial use.
- 3Compact dimensions of 55 (W) x 170 (H) x 170mm to save space in your setup.
- 4IP20-rated unit is touch-proof to increase electrical safety.
- 5Suitable for robotics, pharmaceutical processes, and inline manufacturing operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 170mm | Height | 170mm |
| Width | 55mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Size | FSB | Input Phases | 1 |
| Filter | No built-in filter | Rated Output Current | 2.6A |
| Motor Power | 0.4kW | Rated Voltage | 200-240V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FB10-4UF1 |
Specifications may be subject to change without notice
