Product Model

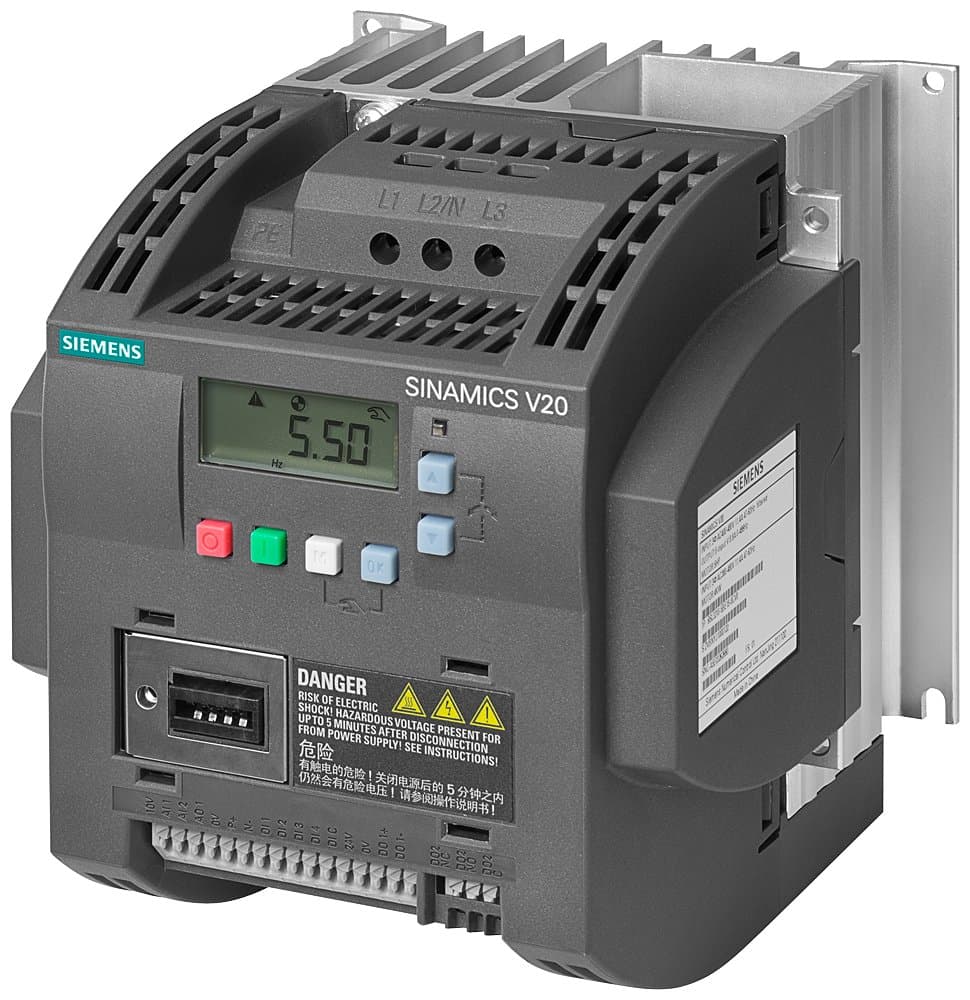

6SL3210-5BE23-0UV0
Key Features
- 1High-performance transducer application with dual output type.
- 2Rated power of 3 kW with 150% overload for 60 seconds.
- 3Unfiltered I/O interface with 4 DI, 2 DO, 2 AI, and 1 AO.
- 4Supports USS/MODBUS RTU fieldbus with built-in BOP protection.
- 5Compact size of B 140x160x165 (WxHxD) with IP20/UL open protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 164.5mm | Height | 160mm |
| Width | 140mm | Digital Outputs | 1 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Size | FSB | Output Phases | 3 |
| Input Phases | 3 | Power Phases | 3AC |
| Filter | No built-in filter | Motor Power | 3kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3210-5BE23-0UV0 |
Specifications may be subject to change without notice
