Product Model

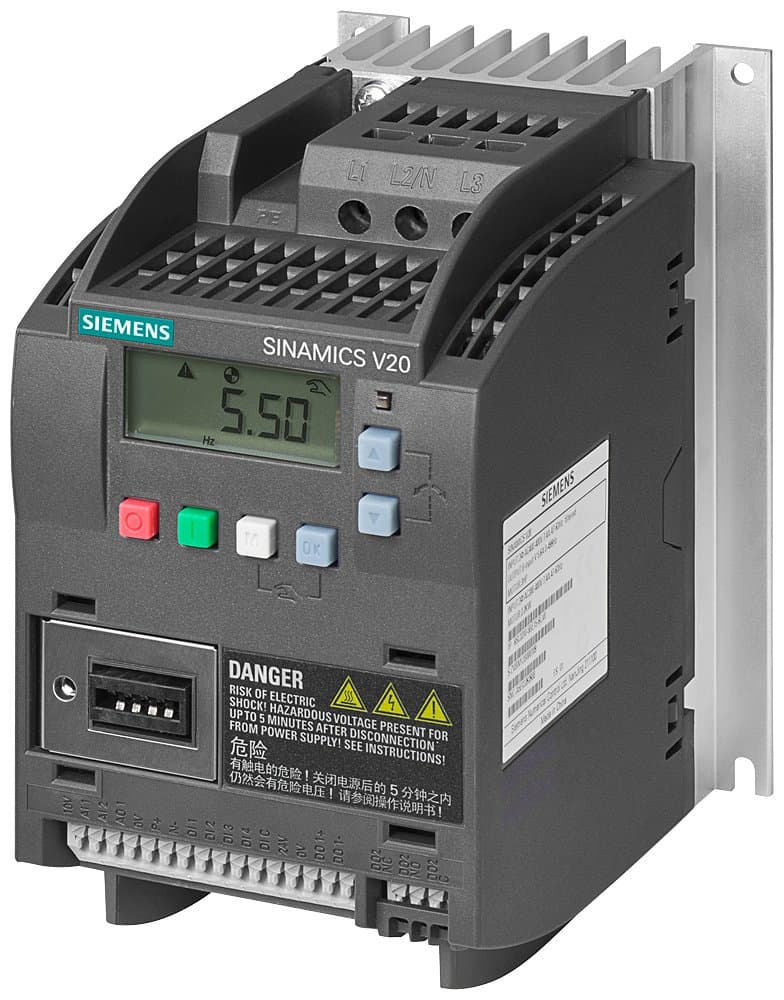

6SL3210-5BE21-1CV0
Key Features
- 11.1 kW with 150% overload for 60 seconds.
- 2C3 I/O interface with 4 DI, 2 DO, 2 AI, and 1 AQ inputs.
- 3Supports USS/MODBUS RTU with built-in BOP protection.
- 4Compact design with IP20/ UL open type enclosure.
- 5Suitable for a wide range of industrial applications including motor control and automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 145.5mm | Height | 166mm |
| Width | 90mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Size | FSA | Output Phases | 3 |
| Input Phases | 3 | Power Phases | 3AC |
| Filter | Filter C3 | Motor Power | 1.1kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3210-5BE21-1CV0 |
Specifications may be subject to change without notice
