Product Model

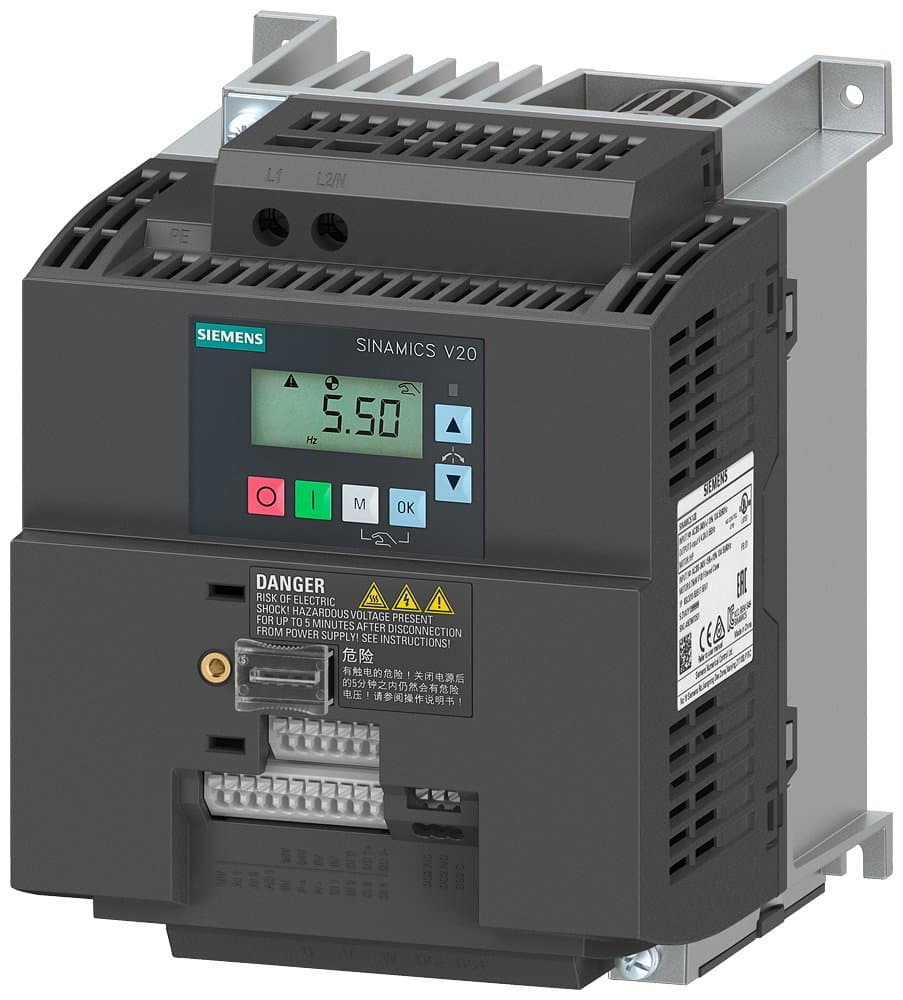

6SL3210-5BB23-0UV1
Key Features
- 13kW with 150% overload for 60 seconds.
- 24 DI, 2 DQ, 2 AI, and 1 AO inputs.
- 3Supports USS and Modbus RTU with built-in BOP protection.
- 4Dimensions: AD 136x176.5x160 (WxHxD).
- 5IP20/UL open type, ensuring durability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 158.8mm | Height | 176.5mm |
| Width | 136.6mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Dimensions | FSAD | Output Phases | 3 |
| Input Phases | 1 | Power Phases | 1AC |
| Filter | No built-in filter | Motor Power | 3kW |
| Rated Voltage | 200-240V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3210-5BB23-0UV1 |
Specifications may be subject to change without notice
