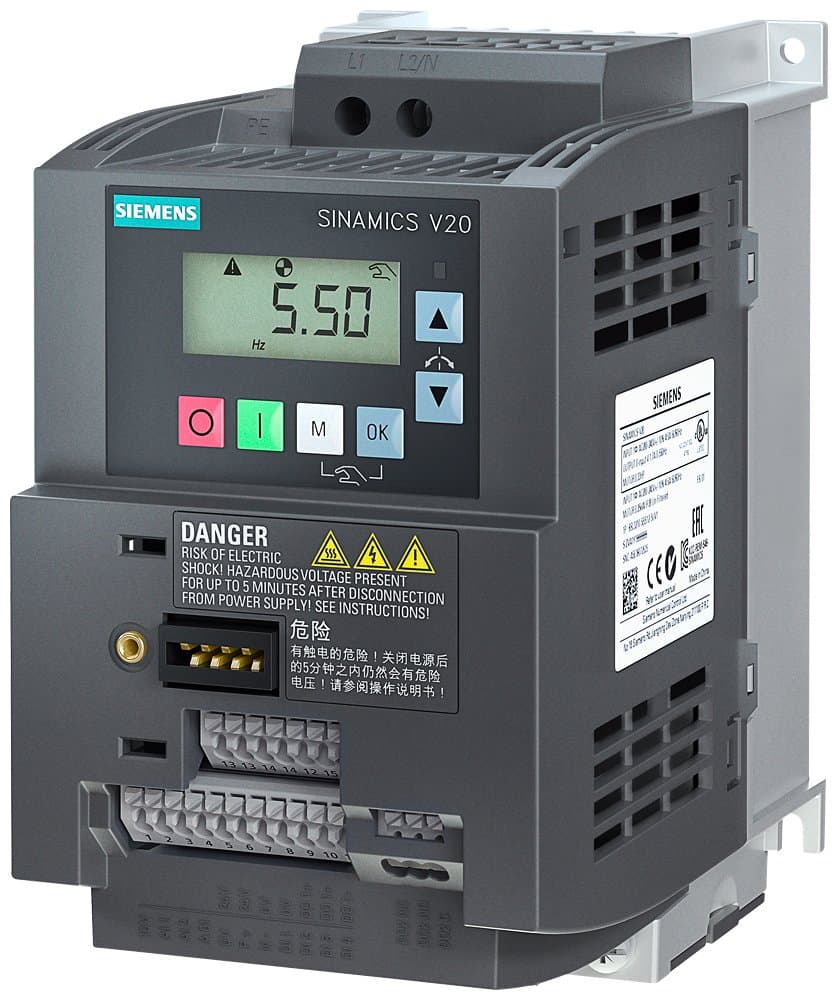

Product Model
6SL3210-5BB21-1UV1
Key Features
- 1High power efficiency with 1.1 kW rated power and 150% overload for 60 seconds.
- 2Robust I/O configuration: 4 DI, 2 DO, 2 AI, and 1 AQ.
- 3Built-in BOP protection for enhanced safety.
- 4Compatible with USS/MODBUS RTU fieldbus protocols.
- 5Compact size: AC 90x160x147 (WxHxD) dimensions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 147mm | Height | 160.9mm |
| Width | 91mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Dimensions | FSAC | Output Phases | 3 |
| Input Phases | 1 | Power Phase | 1AC |
| Filter | No built-in filter | Motor Power | 1.1kW |
| Rated Voltage | 200-240V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3210-5BB21-1UV1 |
Specifications may be subject to change without notice
