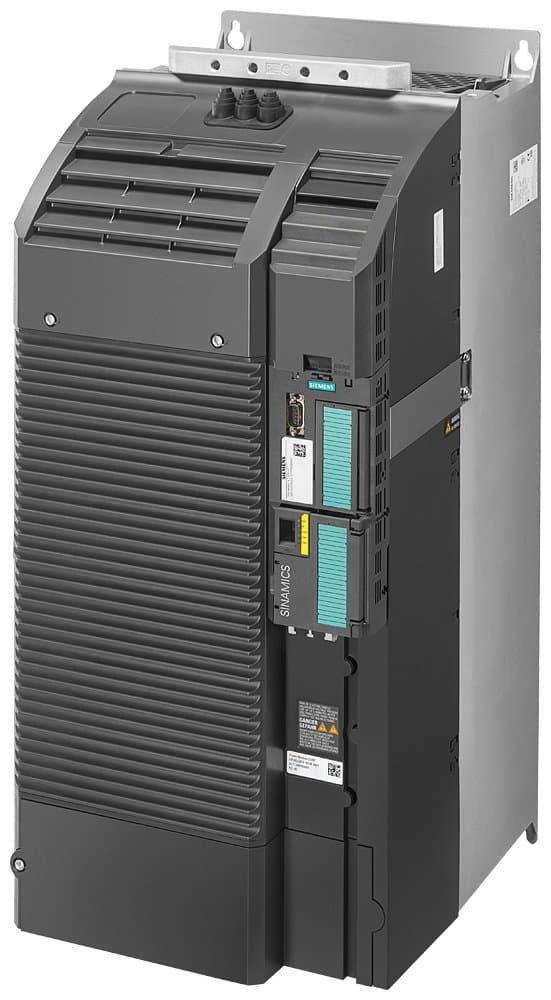

Product Model
6SL3210-1KE32-4AB1
Key Features
- 1High Power Rating: 132 kW rated power for demanding applications.
- 2Robust Overload Capability: 150% overload for 3 seconds and 110% overload for 57 seconds.
- 3Wide Voltage Range: Operates at 3AC380-480V with ±10% tolerance.
- 4Flexible Communication: Supports PROFINET, PROFIBUS, EtherNet/IP, Modbus TCP, and more.
- 5Energy Efficiency: Regenerative feedback capability for up to 60% energy savings in braking applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 357mm | Height | 708mm |
| Width | 305mm | Analog Outputs | 1 |
| Analog Inputs | 1 | Digital Outputs | 2 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Size | FSF | Number of Phases | 3 |
| Filter | Integrated A-class Filter | Motor Power | 132.0kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | EAR99H | AL | N |
| Model Number | 6SL3210-1KE32-4AB1 |
Specifications may be subject to change without notice
