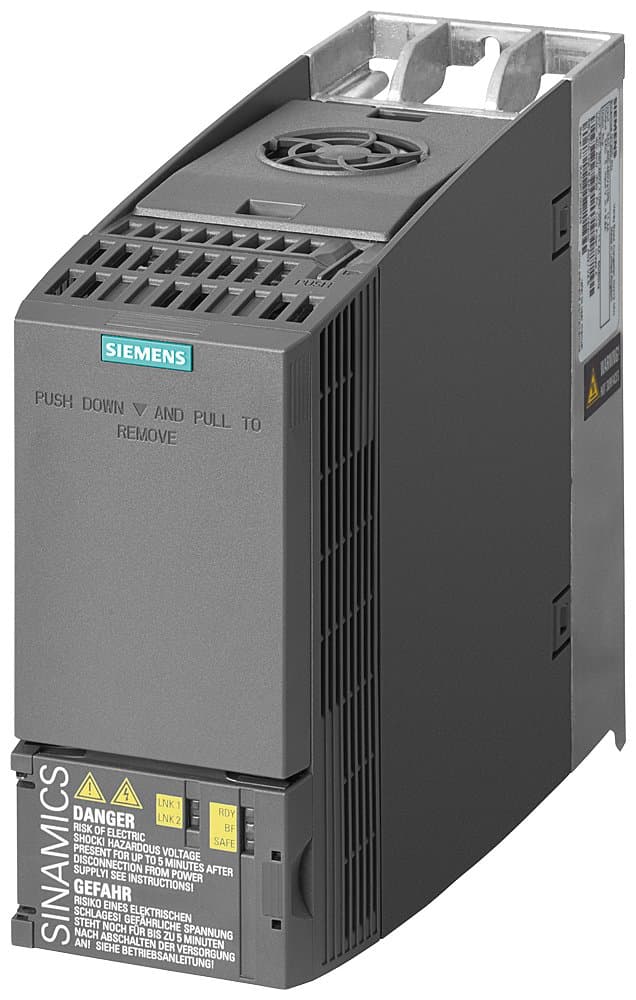

Product Model
6SL3210-1KE18-8AP1
Key Features
- 1Compact and rugged design for easy operation.
- 2Rated power of 4 kW with 150% overload for 3 seconds.
- 3Integrated I/O interface with 6DI, 2DO, 1AI, 1A torque off.
- 4Suitable for 3AC 380-480V with ±10% voltage tolerance.
- 52-year warranty under JCertified guidelines.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 203mm | Height | 196mm |
| Width | 73mm | Analog Outputs | 1 |
| Analog Inputs | 1 | Digital Outputs | 2 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSA | Number of Phases | 3 |
| Filter | Integrated Class A Filter | Motor Power | 4.0kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3210-1KE18-8AP1 |
Specifications may be subject to change without notice
