Product Model

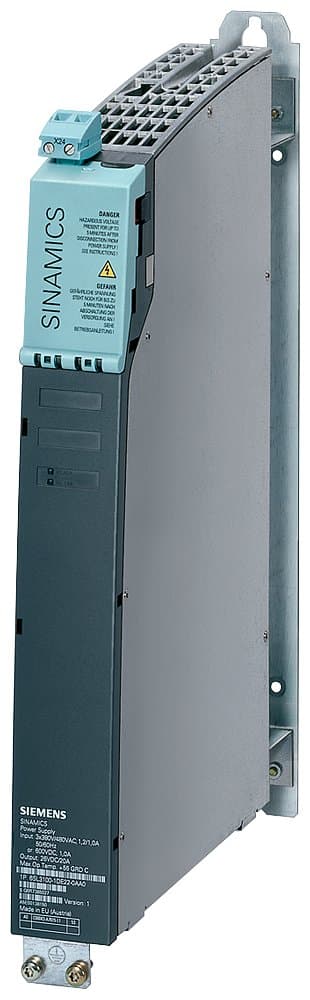

6SL3100-1DE22-0AA1
Key Features
- 1High Power Capacity: Handles up to 20 Amps output current and 100 Amps DC link busbars current capacity.
- 2Compact Design: Booksize construction with dimensions of 1.97 inches wide, 14.96 inches high, and 10.63 inches deep.
- 3Robust Performance: Operates within an input voltage range of 510 to 720 VDC and delivers 24 to 28.8 VDC output.
- 4Secure Connections: Equipped with screw-type terminals for secure and reliable connections.
- 5Compliance with Standards: Meets Category C2 requirements for RI suppression by EN 61800-3, ensuring minimal electromagnetic interference.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Packaging Quantity | 1 | Quantity Unit | 1 Piece |
| Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
| Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
| Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
| Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
| Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
