Product Model

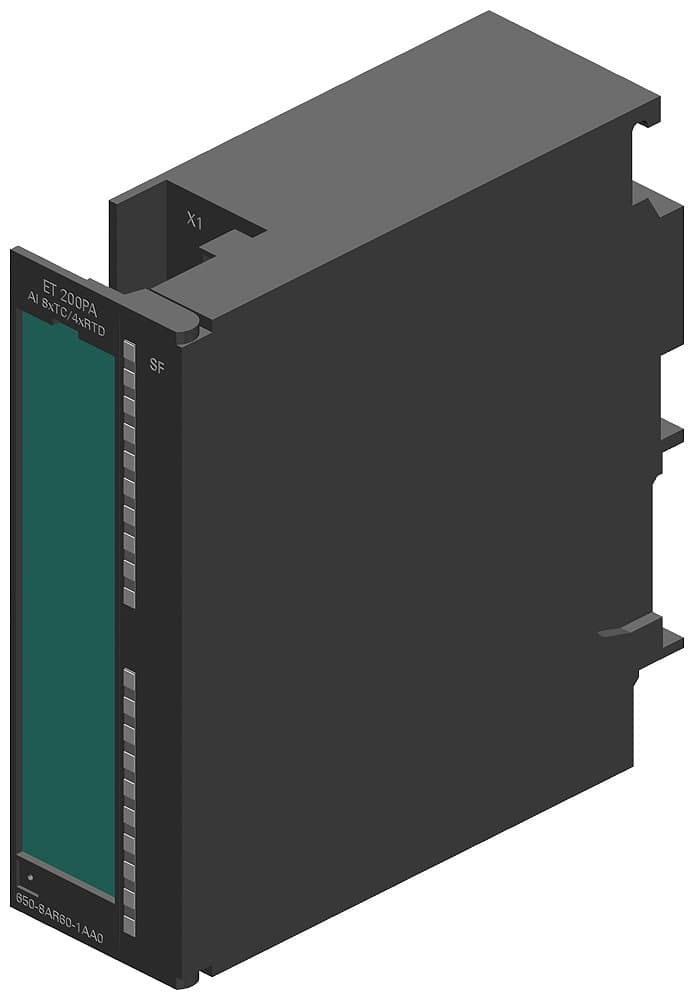

6ES7650-8AR60-1AA0
Key Features
- 1Precise measurement with a linearity error of 0.003% and temperature error of 0.002% per K.
- 2500 V AC/707 V DC isolation tested for safe and reliable operation.
- 3Handles 8 thermocouples and 4 PT100 resistance thermometers with 10 MΩ input resistance.
- 4Customizable diagnostics for overrange, underrange, and wire-break monitoring.
- 5Dimensions of 40 mm x 125 mm x 120 mm, weighing approximately 210 grams.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input Quantity | AI TC/RTD Coated | Operating Voltage | 24VDC |
| Product Type | Analog Input Module | Lifecycle | P.M300 |
| Country of Origin | China | ECCN | EAR99H |
| AL | N | Model Number | 6ES7650-8AR60-1AA0 |
Specifications may be subject to change without notice
