Product Model

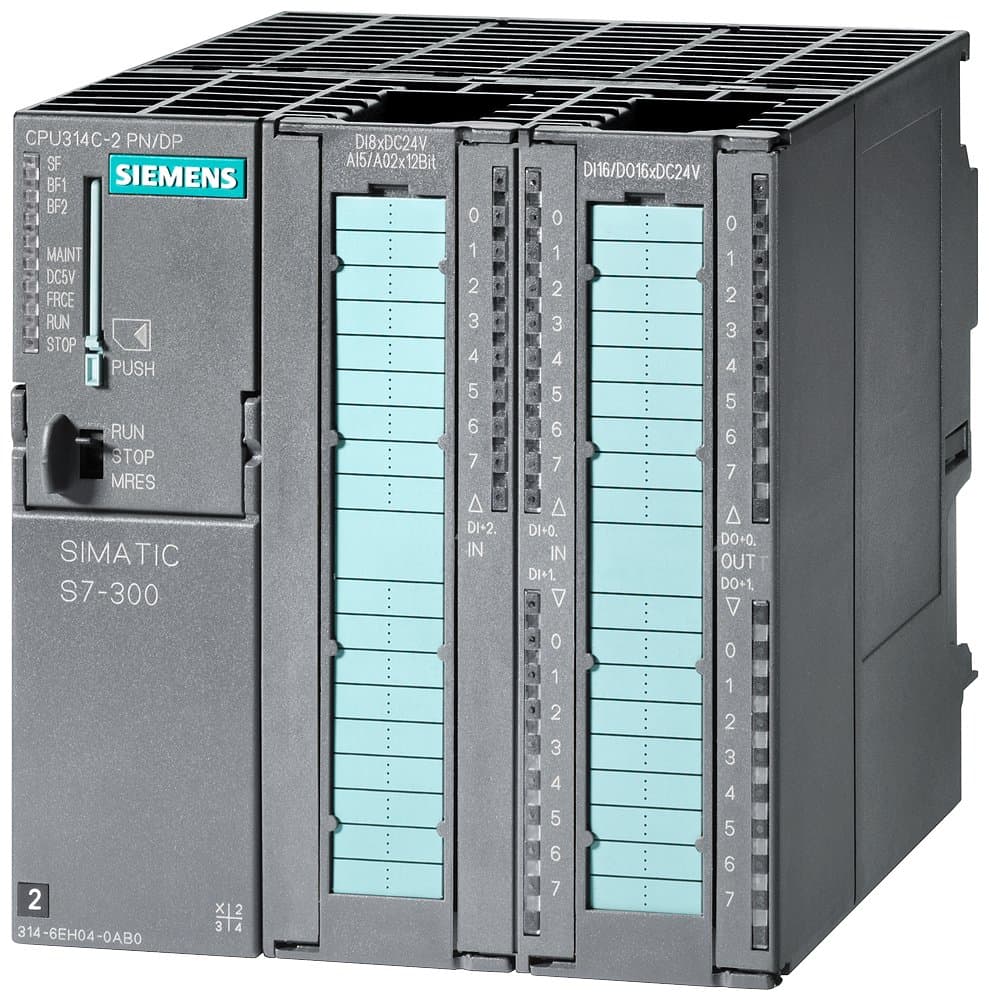

6ES7314-6EH04-4AB2
Key Features
- 1Compact design with 192 KB work memory.
- 2Supports 24 digital inputs and 16 digital outputs.
- 3Includes 4 analog inputs and 2 analog outputs.
- 4Equipped with high-speed counters (60 kHz) and MPI/DP interface.
- 5Integrated power supply with 24 V DC and 2-port Ethernet PROFINET switch.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 130mm | Height | 125mm |
| Width | 120mm | Number of PROFINET Interfaces | 1 |
| Processor Speed (1K, binary operation) | 0.06ms | Memory Capacity | 192kByte |
| Number of Analog Outputs | 2 | Number of Analog Inputs | 5 |
| Number of Digital Outputs | 16 | Number of Digital Inputs | 24 |
| Operating Voltage | 24V DC | Model | CPU314C-2PN/DP Spring Component |
| Type | Compact | Product Type | CPU |
| Lifecycle | P.M300 | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6ES7314-6EH04-4AB2 |
Specifications may be subject to change without notice
