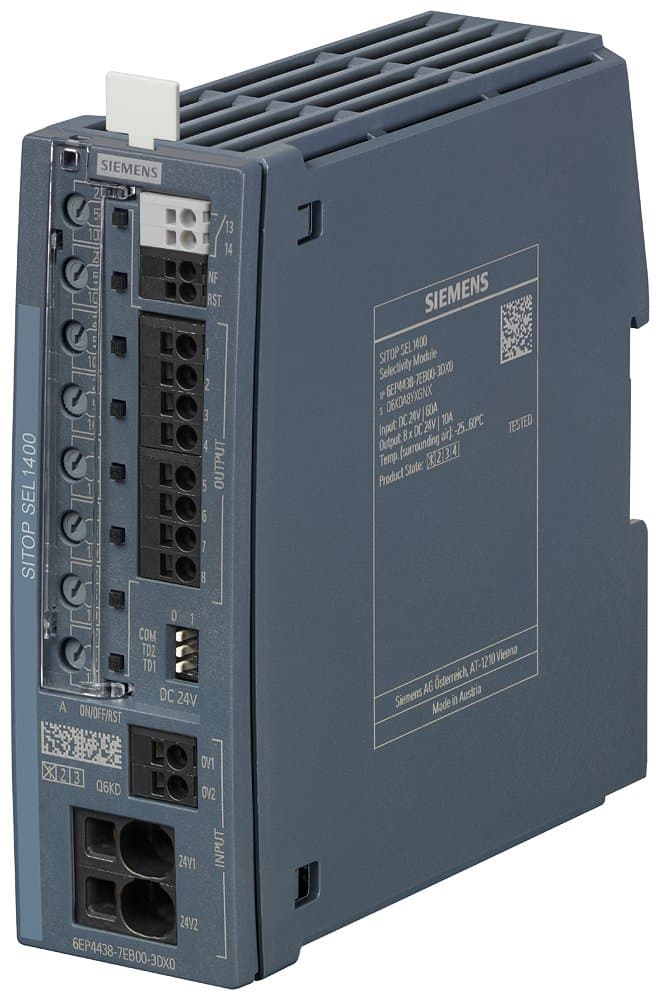

Product Model
6EP4438-7EB00-3DX0
Key Features
- 1Efficiently divides 24 V DC/60 A input into 8x 10 A outputs.
- 2Adjusts threshold from 2-10 A for precise control.
- 3Includes a monitoring interface for real-time monitoring.
- 4Designed for high reliability in industrial power supply systems.
- 5Suitable for various industrial applications requiring precise current distribution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input Voltage Range | DC20.4-30V | Power Phases | DC |
| Rated Output Current | 8X2-10A | Rated Output Voltage | DC24V |
| Rated Input Voltage | DC24V | Lifecycle | P.M300 |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 6EP4438-7EB00-3DX0 |
Specifications may be subject to change without notice
