Product Model

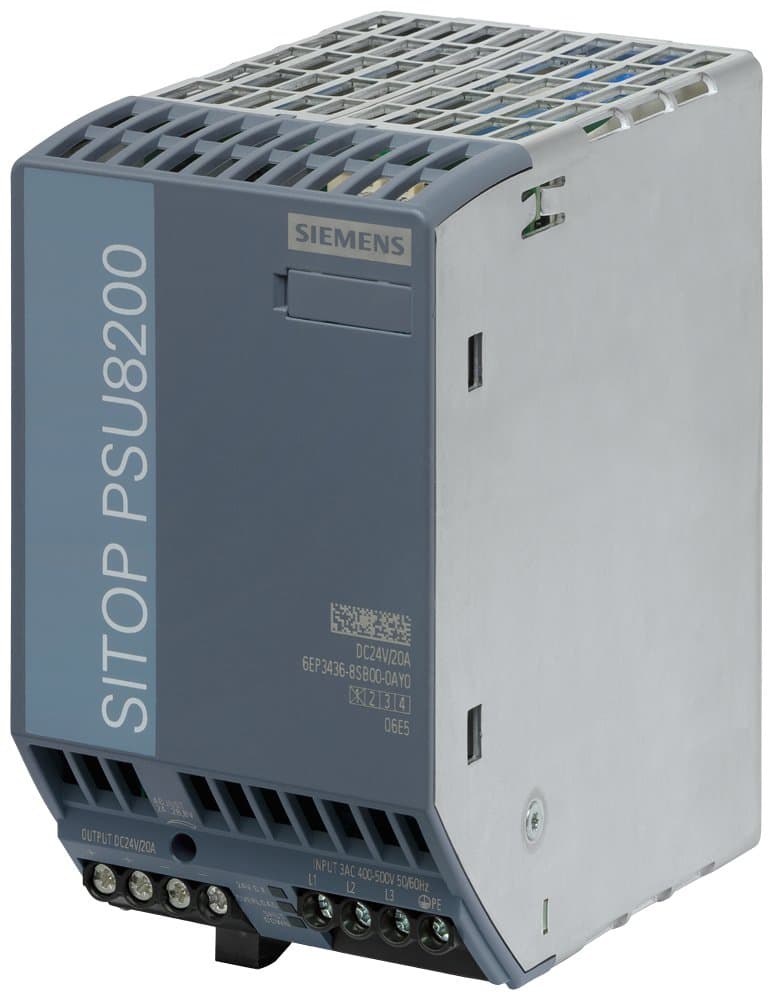

6EP3436-8SB00-0AY0
Key Features
- 1Wide-range input: 400-500 V AC for versatile connectivity.
- 2High efficiency: 94% efficiency minimizes energy consumption and heat generation.
- 3Advanced protection: Overcurrent and short-circuit protection with constant current or latching shutdown.
- 4Compact design: Metal enclosure saves space in control cabinets.
- 5Galvanic isolation: Ensures safe operation with extra-low output voltage according to EN 60950-1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Output Power | 480W | Input Voltage Range | AC 320-575V |
| Power Phase | Three-phase AC | Rated Output Current | 20A |
| Rated Output Voltage | DC 24V | Rated Input Voltage | AC 400-500V |
| Lifecycle | P.M300 | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 6EP3436-8SB00-0AY0 |
Specifications may be subject to change without notice
