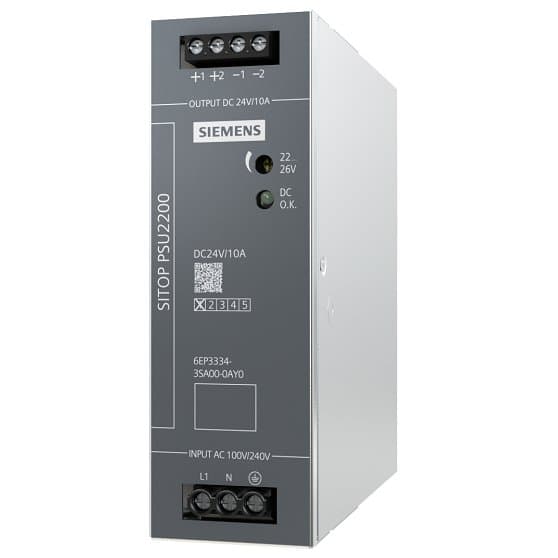

Product Model
6EP3334-3SA00-0AY0
Key Features
- 1Stabilized output: 24V DC/10A for reliable power supply.
- 2Input range: 100-240V AC for versatile installation.
- 3Compact design: Easy to install and space-saving.
- 4Enhanced protection: Equipped with anti-coating features against moisture, dust, and salt spray.
- 5Cost-effective solution: Optimal choice for industrial power needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Weight | 0.62kg | Depth | 117.2mm |
| Height | 123.6mm | Width | 40mm |
| PCB Conformal Coating | Yes | Cold Start Temperature | -40℃ |
| Operating Temperature | -30~+70℃ | Protection Rating | IP20 |
| Output Power | 240W | Input Voltage Range | AC 90~264V |
| Power Phases | Single-phase AC input, DC output | Output Current | 10A |
| Adjustable Output Voltage Range | DC21.6~26.4V | Output Voltage | DC 24V |
| Input Voltage | AC 90~264V | Lifecycle | P.M280 |
| Country of Origin | China | ECCN | EAR99 |
| AL | N | Model Number | 6EP3334-3SA00-0AY0 |
Specifications may be subject to change without notice
