Product Model

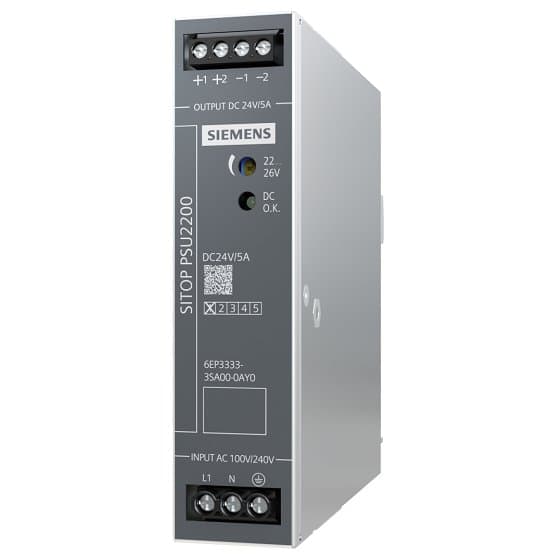

6EP3333-3SA00-0AY0
Key Features
- 1The 6EP3333-3SA00-0AY0 power supply ensures minimal energy loss, maximizing your system's performance.
- 2Its DIN-rail mounting makes it ideal for space-constrained industrial environments.
- 3Provides a stable 24 V DC output of 5 A, ensuring consistent power delivery.
- 4Compatible with 100-240 V AC input, making it versatile for various applications.
- 5Meets RoHS and WEEE directives, ensuring environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Weight | 0.45kg | Depth | 117.2mm |
| Height | 123.6mm | Width | 30mm |
| PCB Conformal Coating | Yes | Cold Start Temperature | -40℃ |
| Operating Temperature | -30~+70℃ | Protection Rating | IP20 |
| Output Power | 120W | Input Voltage Range | AC 85~264V |
| Power Supply Phases | Single-phase AC input DC output | Output Current | 5A |
| Adjustable Output Voltage Range | DC21.6~26.4V | Output Voltage | DC 24V |
| Input Voltage | AC 85~264V | Lifecycle | P.M280 |
| Country of Origin | China | ECCN | EAR99 |
| AL | N | Model Number | 6EP3333-3SA00-0AY0 |
Specifications may be subject to change without notice
