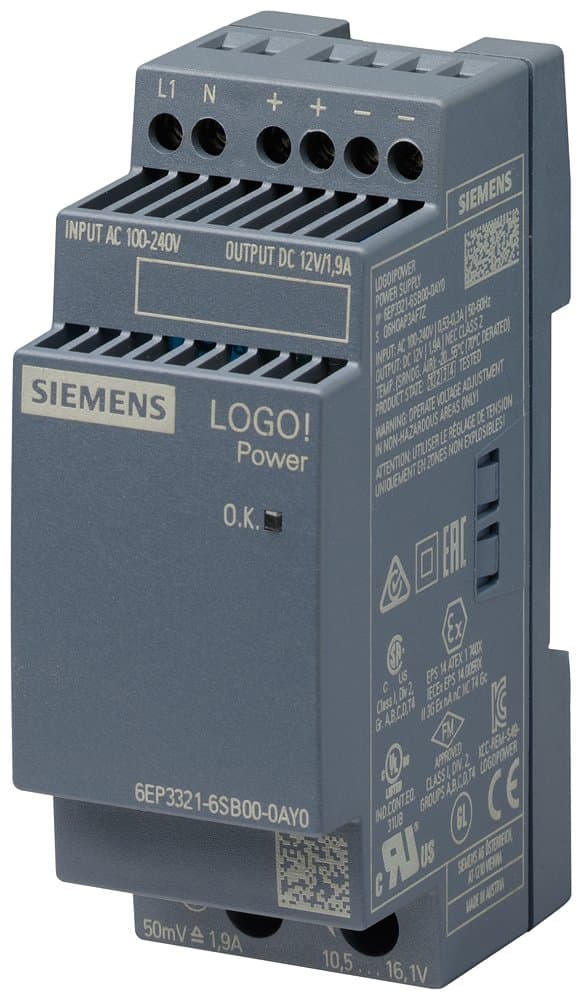

Product Model
6EP3321-6SB00-0AY0
Key Features
- 1Stabilized output voltage of 12V DC.
- 2Compact DIN rail design for easy installation.
- 3Reliable operation in a wide temperature range.
- 4Suitable for universal use with extensive certifications.
- 51.9A output current for efficient power distribution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Output Power | 22.8W | Input Voltage Range | AC 85-264V |
| Number of Power Phases | Single phase AC or DC | Rated Output Current | 1.9A |
| Rated Output Voltage | DC 12V | Rated Input Voltage | AC 100-240V (DC 110-300V) |
| Lifecycle | P.M300 | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 6EP3321-6SB00-0AY0 |
Specifications may be subject to change without notice
