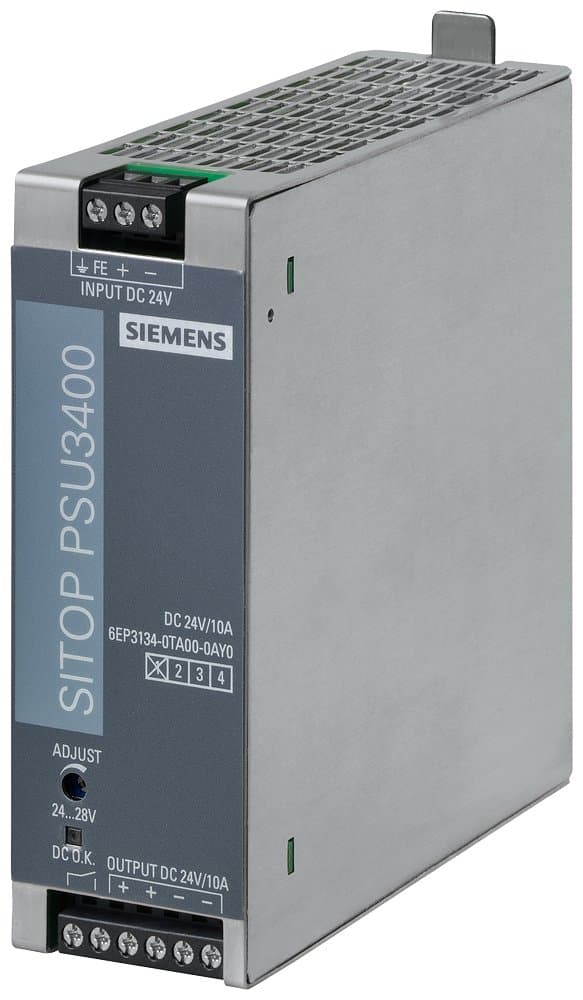

Product Model
6EP3134-0TA00-0AY0
Key Features
- 1Stabilized output voltage ensures consistent performance in fluctuating DC environments.
- 2Compatible with up to four CNX8600 modules and two BUF8600/UPS8600 modules for increased output capacity.
- 3Achieves high efficiency up to 96%, reducing energy consumption and heat generation.
- 4Compact basic units with overload monitoring, suitable for various industrial applications.
- 5Simple engineering and comprehensive monitoring through TIA Portal for easy diagnostics and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Output Power | 240W | Input Voltage Range | DC14-32V |
| Power Phase | Direct Current to Direct Current | Rated Output Current | 10A |
| Rated Output Voltage | DC 24V | Rated Input Voltage | DC24V |
| Lifecycle | P.M300 | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 6EP3134-0TA00-0AY0 |
Specifications may be subject to change without notice
