Product Model

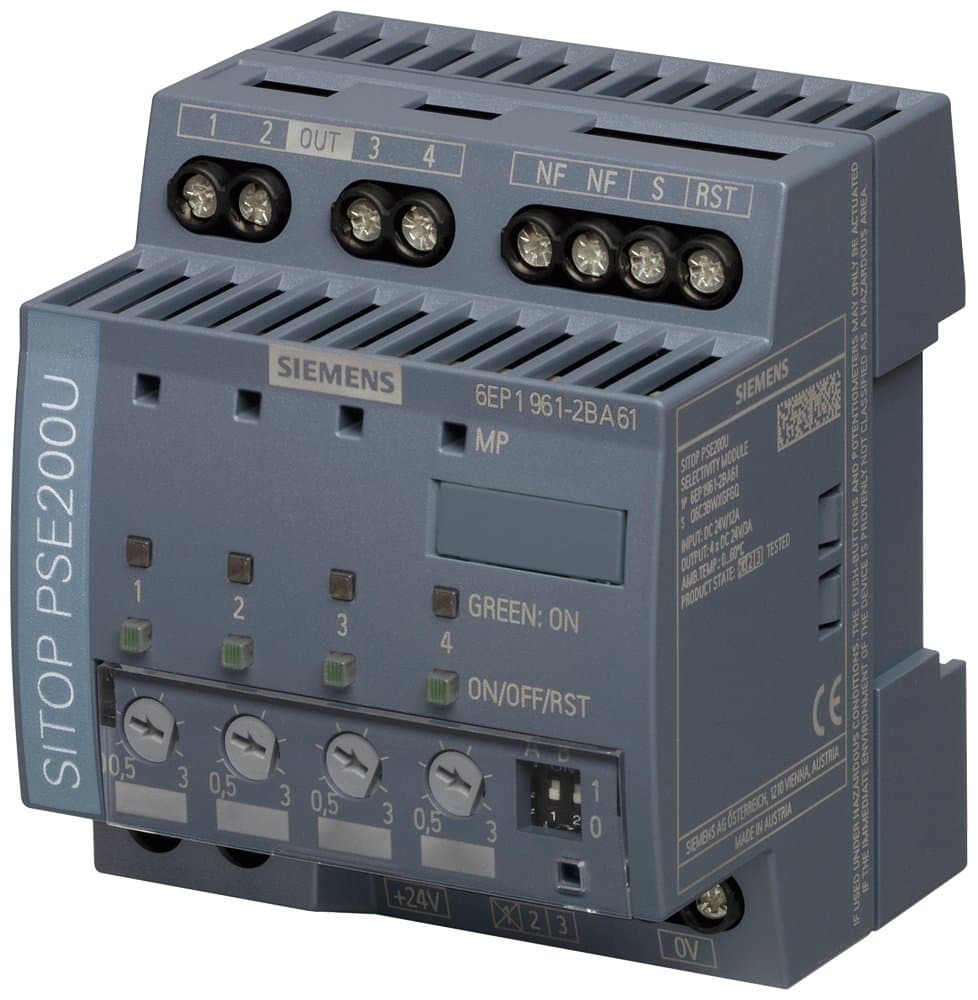

6EP1961-2BA61
Key Features
- 1Advanced Overload Protection: Automatically switches off outputs in case of overload or short-circuit, minimizing downtime.
- 2Remote Diagnostics: Features a floating group signal contact for remote diagnostics, enhancing troubleshooting efficiency.
- 3Multi-Color LEDs: Displays the status of each output using multi-colored LEDs, facilitating faster on-site troubleshooting.
- 4Customizable Response Threshold: Sets the response threshold for each output using a potentiometer, ensuring tailored protection.
- 5Compliance with Safety Standards: Meets ATEX directive 2014/34/EU and EN 60079-0, ensuring safe operation in hazardous environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input Voltage Range | DC22-30V | Power Phases | DC |
| Rated Output Current | 4X0.5-3A | Rated Output Voltage | DC24V |
| Rated Input Voltage | DC24V | Lifecycle | P.M300 |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 6EP1961-2BA61 |
Specifications may be subject to change without notice
