Product Model

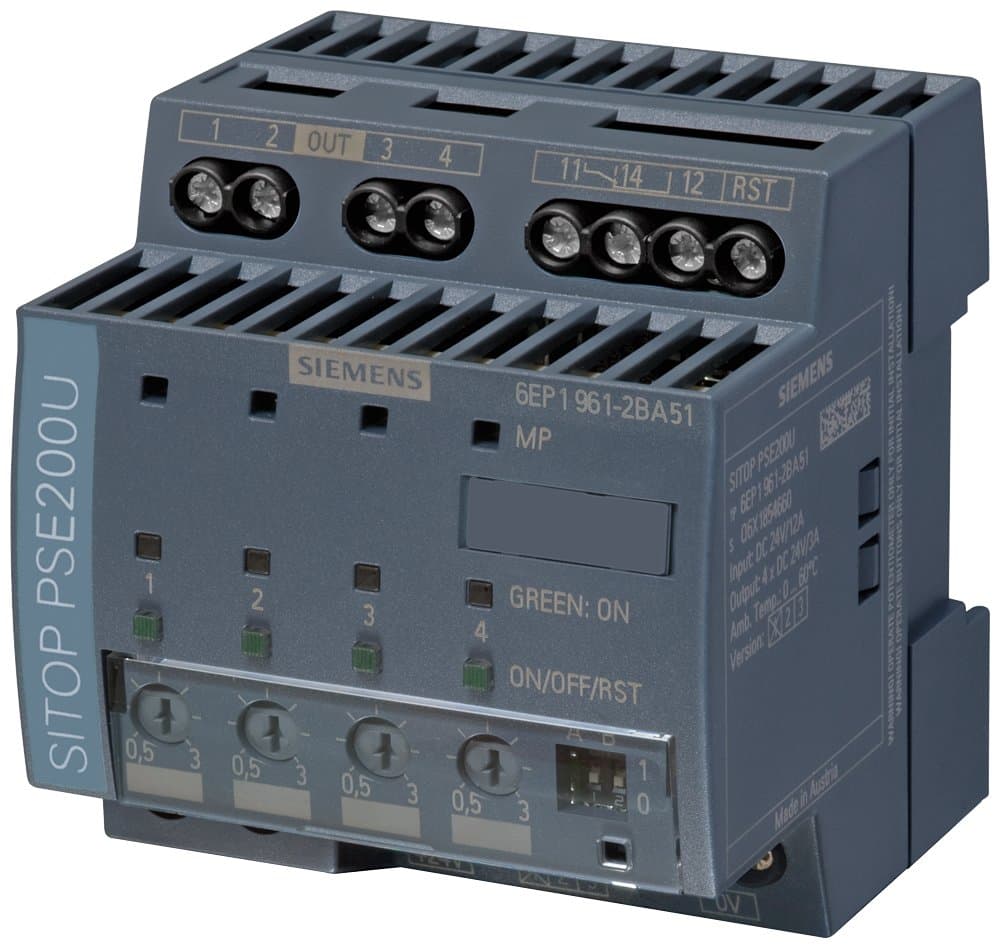

6EP1961-2BA51
Key Features
- 1Provides stable 24VDC output with 3A current, ensuring reliable operation in industrial environments.
- 2Automatically shuts down outputs when current exceeds the set threshold, preventing damage and ensuring safety.
- 3Multi-colored LEDs display the status of each output, facilitating quick on-site diagnostics.
- 4Allows for remote reset of automatically shut-down outputs, minimizing downtime.
- 5Meets NEC Class 2 standards for limited output power ratings, making it suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Input Voltage Range | DC22-30V | Power Phases | DC |
| Rated Output Current | 4X0.5-3A | Rated Output Voltage | DC24V |
| Rated Input Voltage | DC24V | Lifecycle | P.M300 |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 6EP1961-2BA51 |
Specifications may be subject to change without notice
