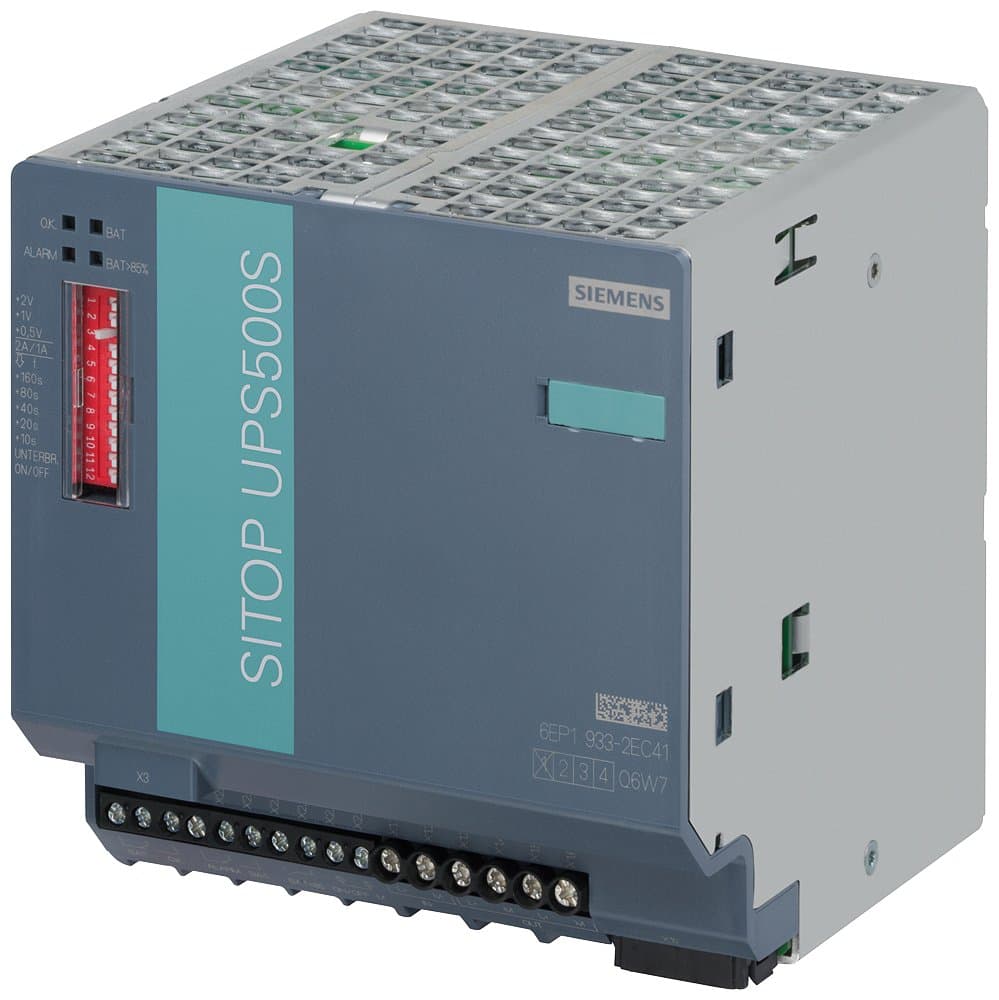

Product Model
6EP1933-2EC41
Key Features
- 1Equipped with long-lasting, gas-free capacitors that require no maintenance.
- 2Operates at 97.5% efficiency, minimizing power loss and maximizing performance.
- 3Supports up to 3 expansion modules for extended buffering times in power failures.
- 4Compact design (120 × 125 × 125 mm) with IP20 protection, ensuring reliable operation in various environments.
- 5Features a USB interface for easy communication with PCs and a free software tool for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Output Power | 360W | Input Voltage Range | DC22-29V |
| Power Phase | Direct Current | Rated Output Current | 15A |
| Rated Output Voltage | DC24V | Rated Input Voltage | DC24V |
| Lifecycle | P.M300 | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 6EP1933-2EC41 |
Specifications may be subject to change without notice
