Product Model

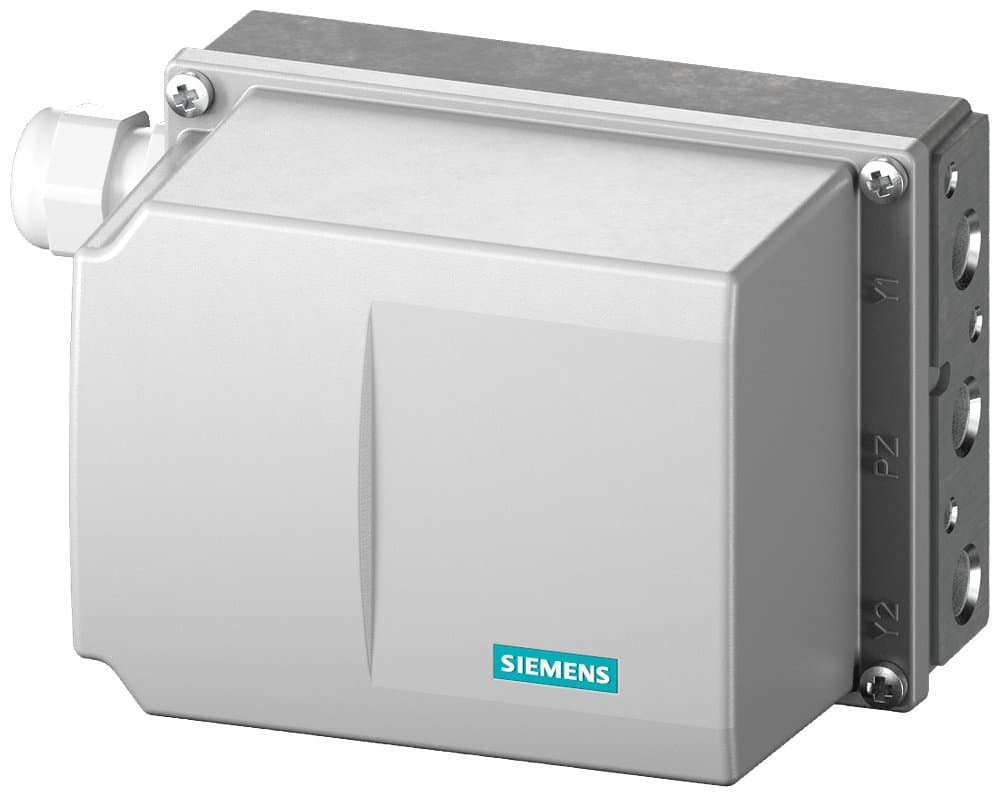

6DR7112-0AN01-1AA0
Key Features
- 1Automates control valves with 4 to 20 mA input.
- 2Suitable for single and double-acting linear and rotary actuators.
- 3Easy commissioning via a single button press.
- 4Robust aluminum housing without viewing window.
- 5Compatible with M20 x 1.5 cable entries and pneumatic threads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Ambient Temperature | -20 ... +80 °C | Electrical Connection (Second) | M20 x 1.5/Plastic Cable Gland |
| Electrical Connection (First) | M20 x 1.5/Plastic Cable Gland | Air Supply Port | G¼ |
| 4-20mA Position Feedback | No 4-20mA Position Feedback | Communication Method | HART Communication |
| Explosion Protection Type | Non-Explosion Proof | Housing Material | Aluminum Housing |
| Actuator Type | Double Acting | Product Series | SIPART PS100 |
| Lifecycle | P.M300 | Country of Origin | Germany |
| ECCN | EAR99H | AL | N |
| Model Number | 6DR7112-0AN01-1AA0 |
Specifications may be subject to change without notice
