Product Model

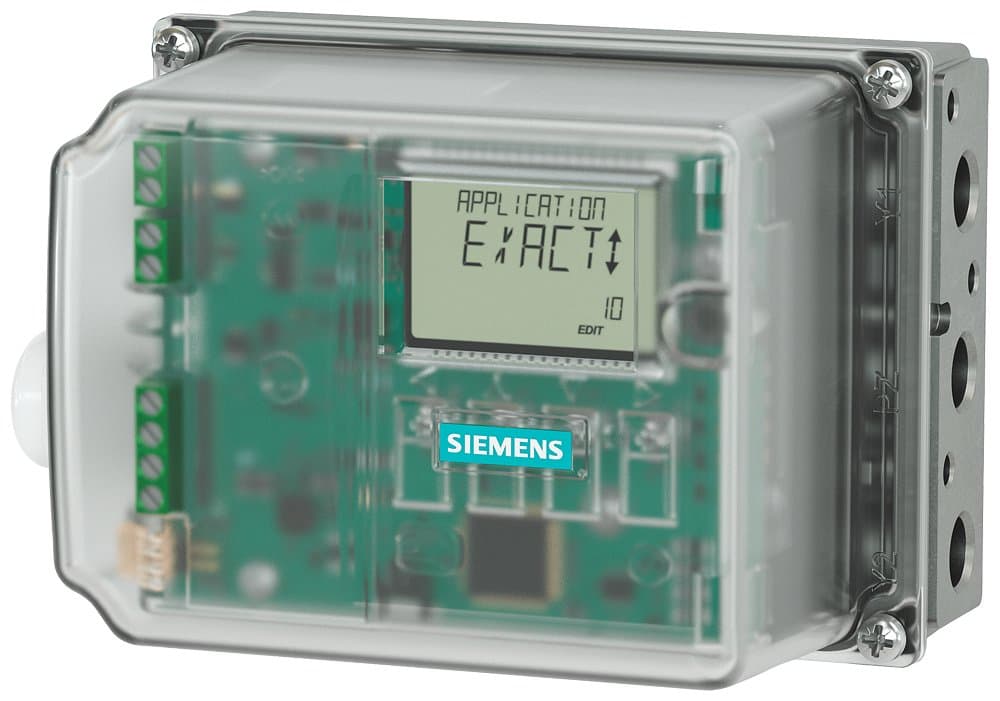

6DR7101-1AN01-1AA0
Key Features
- 1Automates control valves with a 4 to 20 mA input.
- 2Suitable for single and double-acting linear and part-turn actuators.
- 3Commissioning is done at the push of a button, no positioner knowledge required.
- 4Enclosure has a polycarbonate lid with a viewing window for easy monitoring.
- 5Compatible with various cable entry configurations, including M20 x 1.5 and pneumatic threads.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Ambient Temperature | -20 ... +80 °C | Electrical Connection (Second) | M20 x 1.5/Plastic Cable Gland |
| Electrical Connection (First) | M20 x 1.5/Plastic Cable Gland | Air Supply Port | G¼ |
| 4-20mA Position Feedback | No 4-20mA Position Feedback | Communication Method | HART Communication |
| Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Transparent Polycarbonate Cover |
| Actuator Type | Single Acting | Product Series | SIPART PS100 |
| Lifecycle | P.M300 | Country of Origin | Germany |
| ECCN | EAR99H | AL | N |
| Model Number | 6DR7101-1AN01-1AA0 |
Specifications may be subject to change without notice
