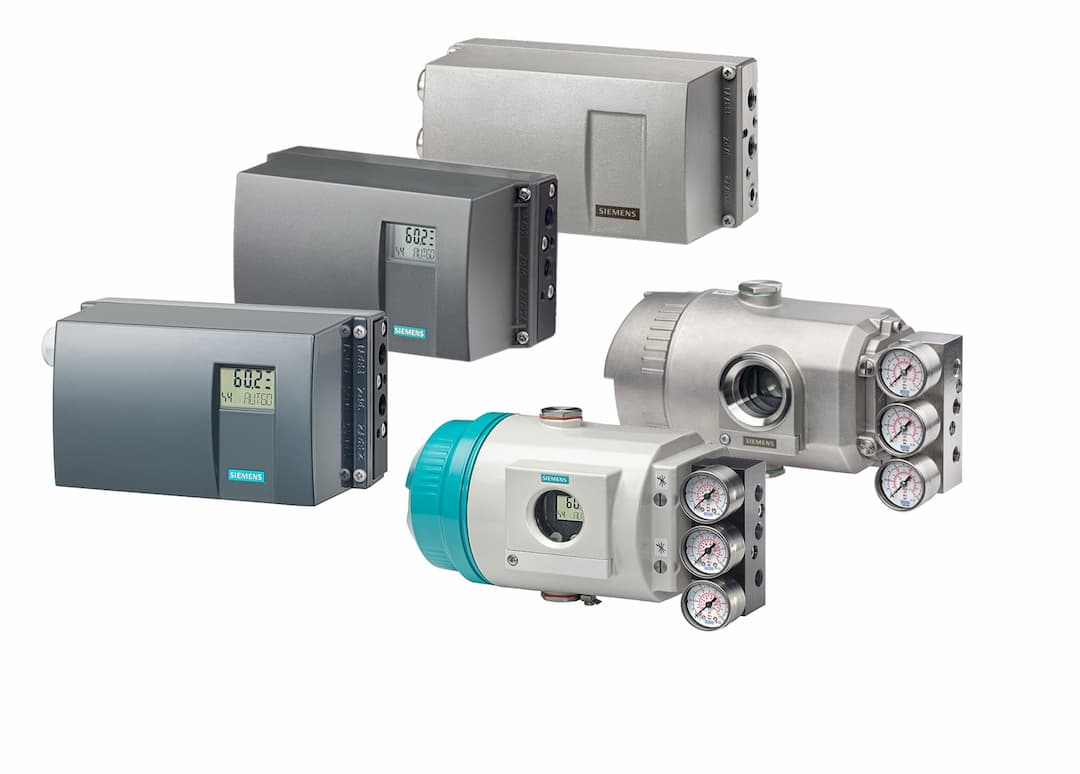

Product Model
6DR5110-0NG01-0AA0
Key Features
- 1The SIPART PS2 uses non-contacting (wear-free) position detection (NCS) for precise and durable operation.
- 2The positioner is compatible with HART communication protocol, ensuring seamless integration with various control systems.
- 3The device features a polycarbonate enclosure, providing a robust and durable housing for harsh industrial environments.
- 4Includes an Analog Output Module (AOM) for analog position feedback via 4...20mA.
- 5Standard fail-safe design depressurizes the actuator in case of failure of electrical auxiliary power, ensuring safety in critical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Electrical Interface (Second) | M20x1.5 with Cable Gland | Electrical Interface (First) | M20x1.5 with Cable Gland |
| Air Supply Port | G¼ | 4-20mA Position Feedback | With 4-20mA Position Feedback |
| Communication Method | HART Communication | Explosion Protection Type | Non-Explosion Proof |
| Housing Material | Plastic Aluminum Housing (Polycarbonate) | Actuator Type | Single Acting |
| Product Series | SIPART PS2 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6DR5110-0NG01-0AA0 |
Specifications may be subject to change without notice
