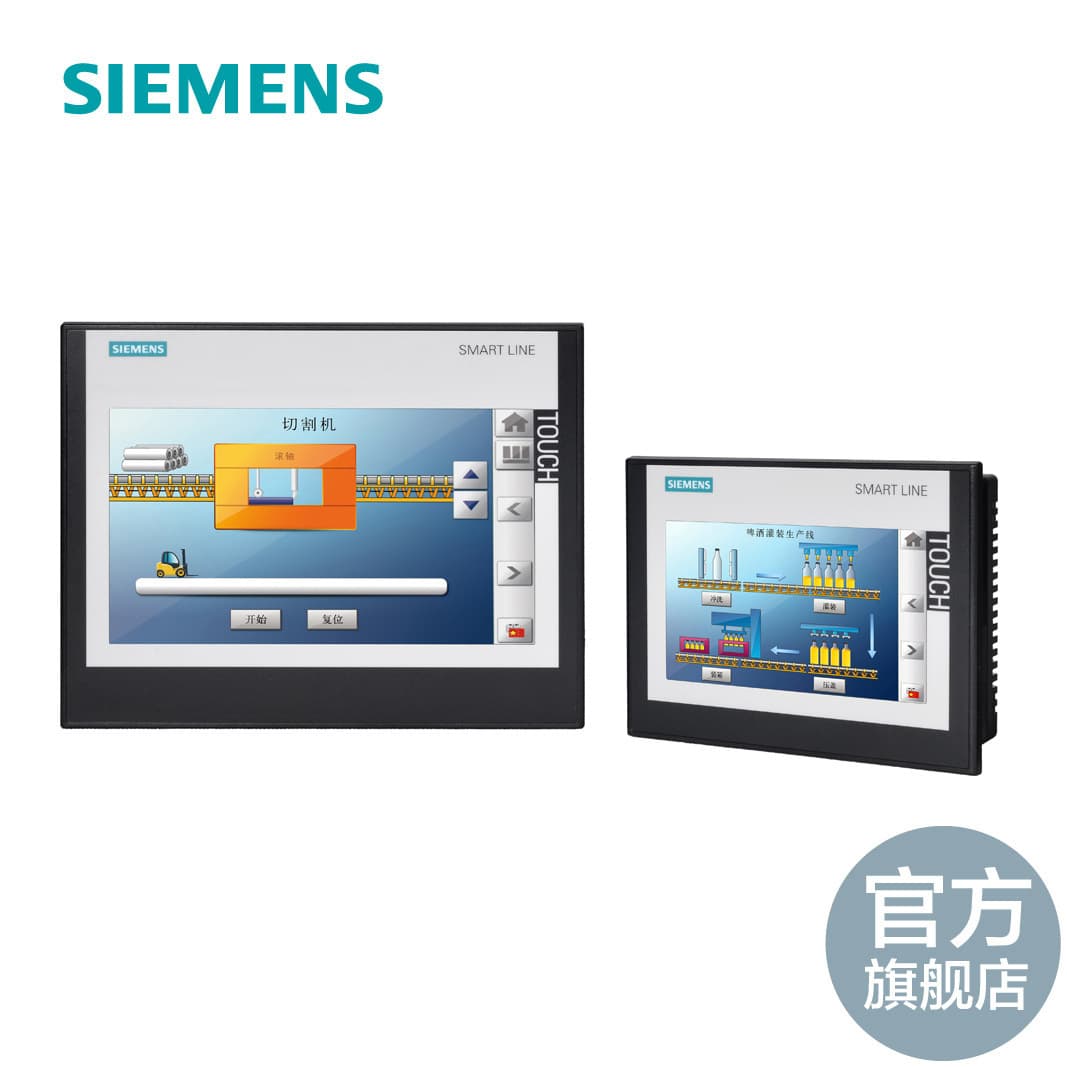

Product Model
6AV6648-0CE11-3AX0
Key Features
- 1Advanced 10" widescreen TFT display with 65,536 colors.
- 2Touch operation for intuitive control and navigation.
- 3Equipped with RS422/485 and Ethernet (RJ45) interfaces for seamless connectivity.
- 4Supports real-time clock (RTC) and is configurable from WinCC flexible SMART.
- 5Includes open-source software and is CE certified for industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimensions | 65,536 | Color Quantity/Gray Scale | 24V |
| Power Voltage | Yes | User Script Support | No |
| Internal Variables | 800 | Pattern Types | Bar Graph/Roll Bar/Symbol Library/Curve |
| Communication Interfaces | Serial Port/PPI/RS485/RS422/Ethernet | Number of USB Ports | 1 |
| Memory Card Slot | None | Memory System | Data 128MB/Program 256MB |
| Operation Method | Touch | Resolution | 1024*600 |
| Display Size (inches) | 10.1 | Lifecycle | P.M300 |
| Country of Origin | China | ECCN | EAR99 |
| AL | N | Model Number | 6AV6648-0CE11-3AX0 |
Specifications may be subject to change without notice
