Product Model

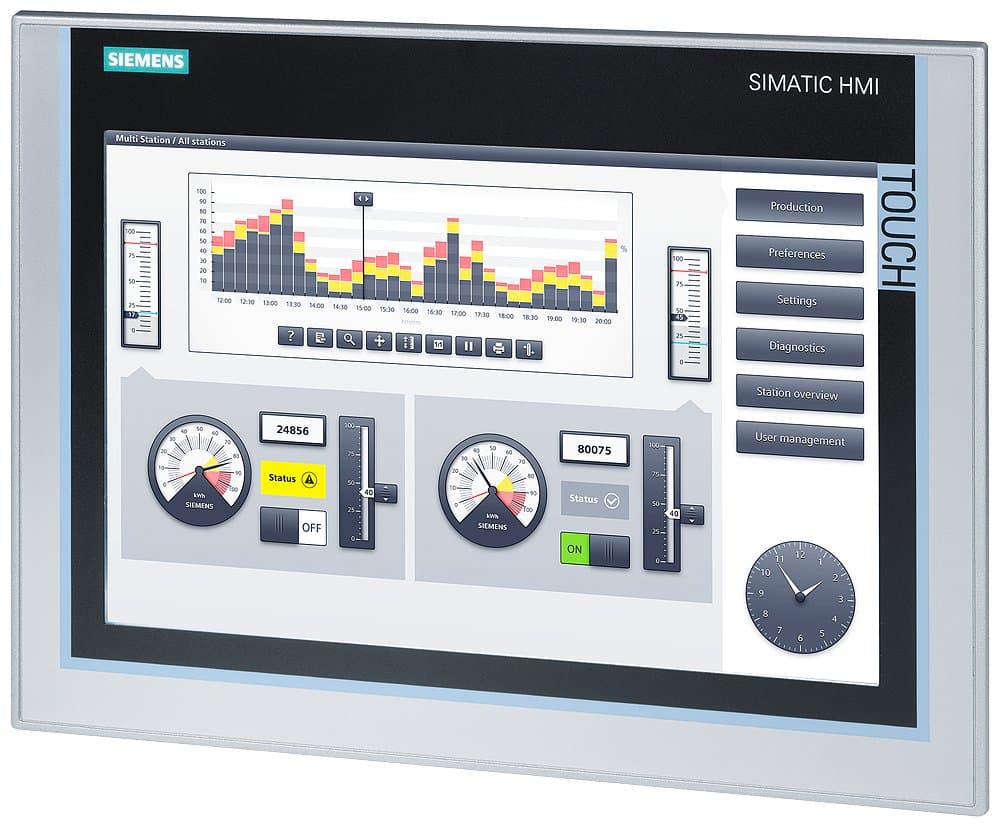

6AV2124-0MC01-0AX0
Key Features
- 1Advanced 12.1-inch widescreen TFT display with 16 million colors for high-definition visualization.
- 2Intuitive capacitive touchscreen and multi-touch functionality for easy navigation.
- 3Supports PROFINET, MPI, and PROFIBUS DP interfaces for efficient communication with Siemens automation systems.
- 4Equipped with 12 MB configuration memory and runs on Windows CE 6.0 for extensive software compatibility.
- 5Ruggedized enclosure resistant to dust, moisture, and vibrations, ensuring dependable performance in harsh industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of Colors/Grayscale Levels | 16,777,216 | Power Supply Voltage | 24V |
| User Script Support | VB | Internal Variables | 2048 |
| Pattern Type | Bar Graph/Curve f(t),f(x) | Communication Interface | Serial/MPI/PROFIBUS DP/PROFINET*2 |
| Number of USB Interfaces | 2 | Memory Card Slot | MMC/SD |
| System Memory | 12MB | Operation Method | Touch |
| Resolution | 1280*800 | Display Size (Inches) | 12" |
| Lifecycle | P.M300 | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 6AV2124-0MC01-0AX0 |
Specifications may be subject to change without notice
