Product Model

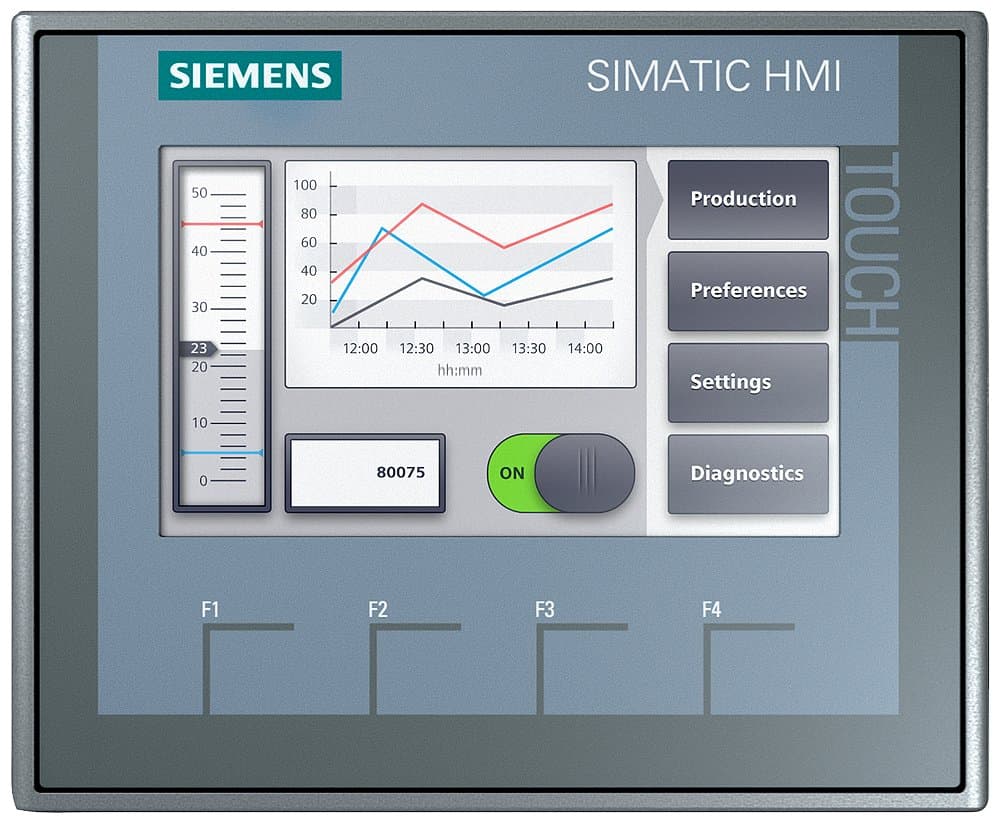

6AV2123-2DB03-0AX0
Key Features
- 1Key/touch operation: Easily navigate with both keypad and touch display.
- 24'' TFT display: High-resolution 65536 color display for clear visibility.
- 3PROFINET interface: Seamless integration with industrial networks.
- 4Configurable software: Compatible with WinCC Basic V13 and STEP 7 Basic V13.
- 5Open-source software included: Free software provided on enclosed CD.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimensions | 65,536 | Number of Colors/Grayscale Levels | 24V |
| Power Voltage | Yes | User Script Support | No |
| Internal Variables | 800 | Graph Type | Bar Graph/Curve f(t) |
| Communication Interface | PROFINET | Number of USB Ports | 1 |
| SD Card Slot | No | Memory System | 10MB |
| Operation Method | Touch + Buttons | Resolution | 480*272 |
| Display Size (inches) | 4" | Lifecycle | P.M300 |
| Country of Origin | China | ECCN | 9N9999 |
| AL | N | Model Number | 6AV2123-2DB03-0AX0 |
Specifications may be subject to change without notice
