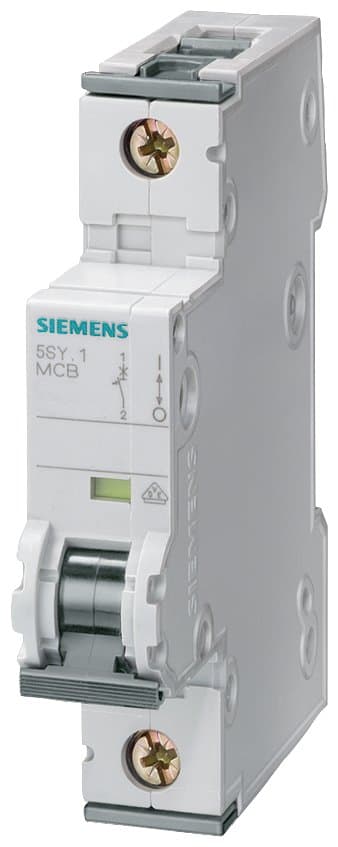

Product Model
5SY4104-7
Key Features
- 1Reliable Protection Against Overload and Short Circuits: Safeguards electrical installations from both overload currents and short circuits.
- 2High Breaking Capacity: Features a 10kA breaking capacity for robust short-circuit protection.
- 3Compact Design: Measures 90mm x 18mm x 76mm, making it easy to install in tight spaces.
- 4Type C Tripping Characteristic: Trips between 5 to 10 times the full load current, ensuring reliable operation.
- 5Durable Construction: Built with halogen-free and silicon-free materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Protection Rating IP | IP20 | Overvoltage Category | 3 |
| Current Limiting Class | 3 | Release Characteristic | C |
| Voltage Type | AC | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 5SY4104-7 |
Specifications may be subject to change without notice
