Product Model

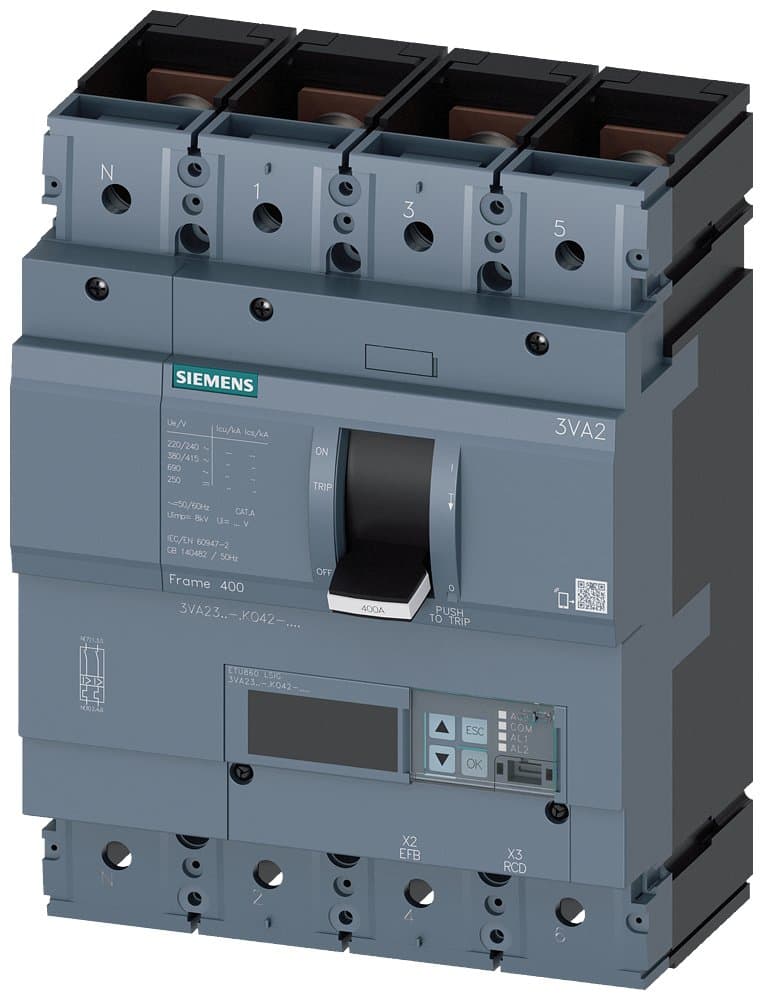

3VA2325-7KQ42-0AA0
Key Features
- 1High breaking capacity up to 110 kA at 415 V AC.
- 2Selective protection response in rated operational current interval 1 : 2.5.
- 3Integrated metering function for energy data collection.
- 4Compact design with a cover size of 70 mm for easy installation.
- 5Modular and easy-to-fit internal accessories with diverse functions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA2C400 R250 ETU860 F/4P; 3VA2_400 dimensions; Rated Current 250A; Interrupting C:110kA; Trip Unit ETU860; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860 [Electronic LSIG+LCD+Mea] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 250 | Specifications: | 400 [250-400A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2325-7KQ42-0AA0 |
Specifications may be subject to change without notice
