Product Model

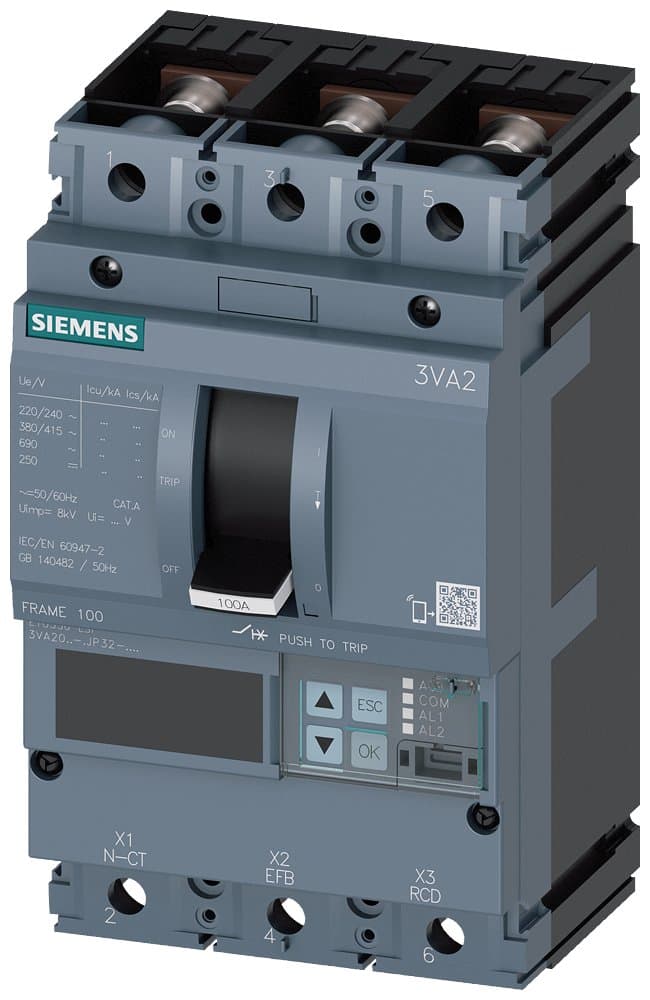

3VA2040-7JP32-0AA0
Key Features
- 1High breaking capacity up to 110 kA at 415 V.
- 2Selective protection for fast and precise tripping.
- 3Integrated metering function for real-time energy data.
- 4Compact design with modular and easy-to-fit internal accessories.
- 5Compatible with various communication systems for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
| Number of Poles: | 3P | Description | 3VA2C100 R40 ETU550 F/3P; 3VA2_100 Dimensions; Rated Current 40A; Interrupting Rating C:110kA; Trip Unit ETU550; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU550 [Electronic LSI + LCD] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
| Rated Current In(A): | 40 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA2040-7JP32-0AA0 |
Specifications may be subject to change without notice
