Product Model

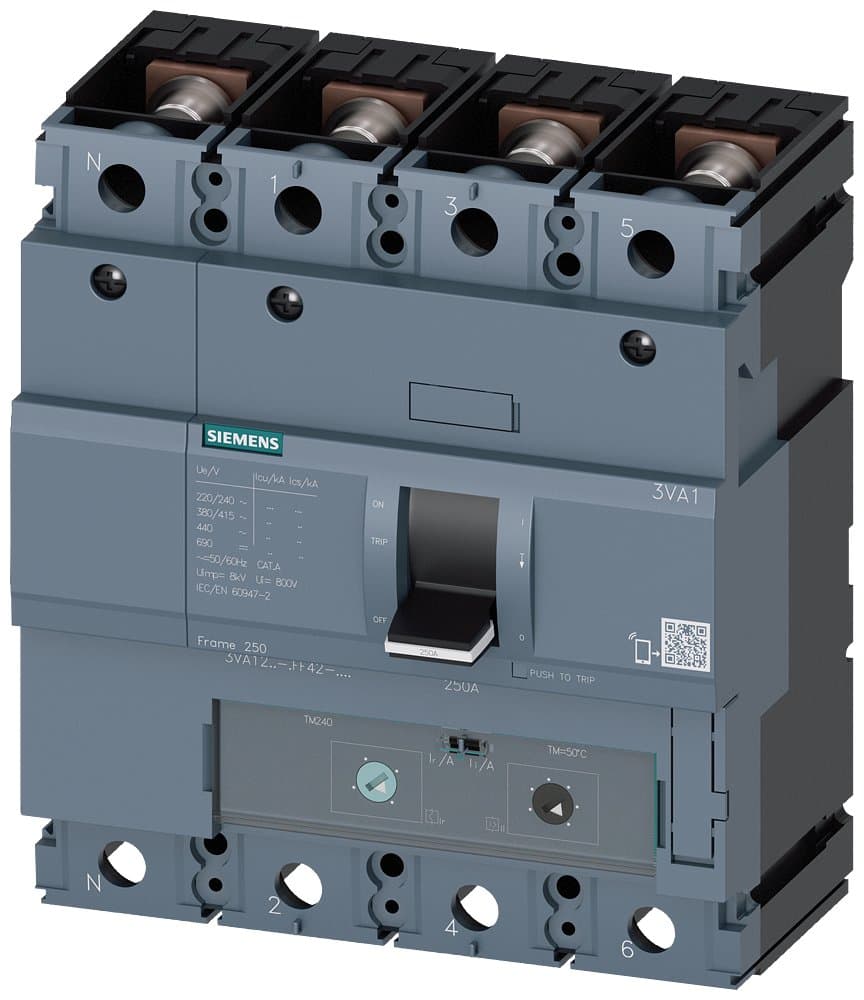

3VA1220-5GF42-0AA0
Key Features
- 1High Breaking Capacity: 55 kA at 415 V, ensuring robust electrical protection.
- 2Advanced Line Protection: Equipped with TM240 and ATAM for comprehensive line protection.
- 3Overload Protection: Safeguards against overloads up to 200 A.
- 4IEC Frame 250: Meets international standards for electrical equipment.
- 5Reliable Performance: Designed for continuous operation in demanding industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1M250 R200 TM240N F/4P; 3VA1_250 dimensions; Rated Current 200A; Interrupting M:55kA; Trip Unit TM240N; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240N【Thermal Magnetic Type LI】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 200 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VA1220-5GF42-0AA0 |
Specifications may be subject to change without notice
