Product Model

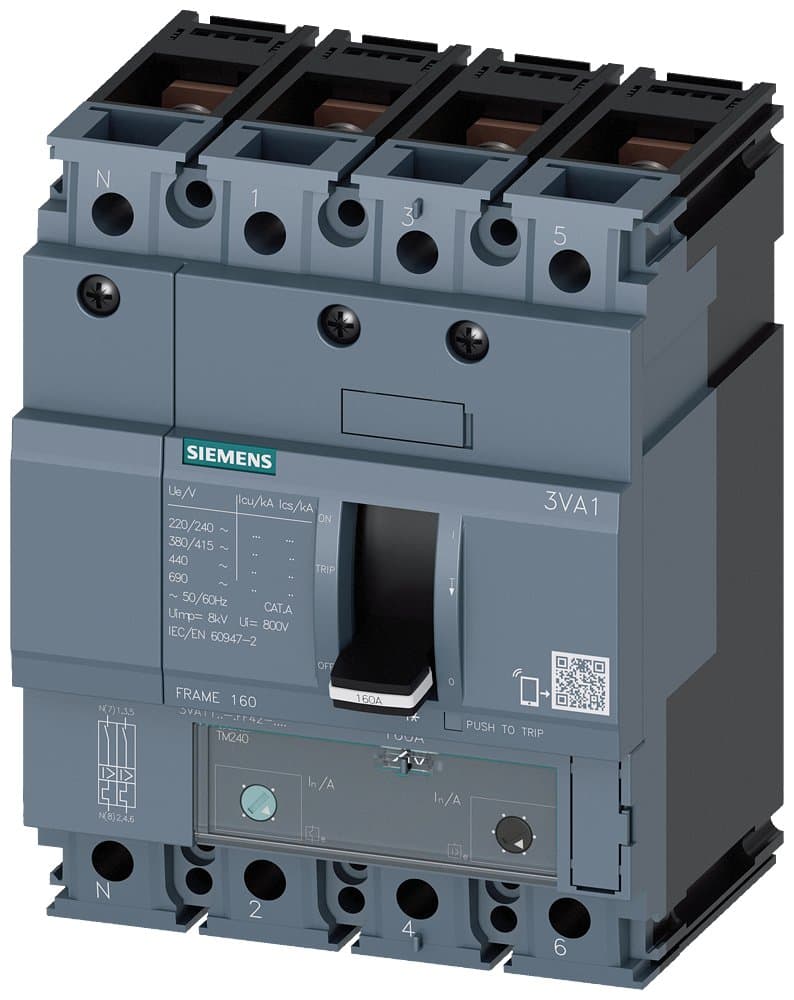

3VA1180-5GF42-0AA0
Key Features
- 155 kA at 415 V for reliable short-circuit protection.
- 2TM240 and ATAM protection ensure comprehensive safety.
- 3Available in 4-pole configuration with a compact design.
- 4Thermal-magnetic trip units for efficient overload protection.
- 5Wide range of internal and external accessories for customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1M160 R80 TM240N F/4P; 3VA1_160 dimensions; Rated Current 80A; Interrupting M:55kA; Trip Unit TM240N; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240N [Thermal Magnetic Type LI] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 80 | Specifications: | 160 [1-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VA1180-5GF42-0AA0 |
Specifications may be subject to change without notice
