Product Model

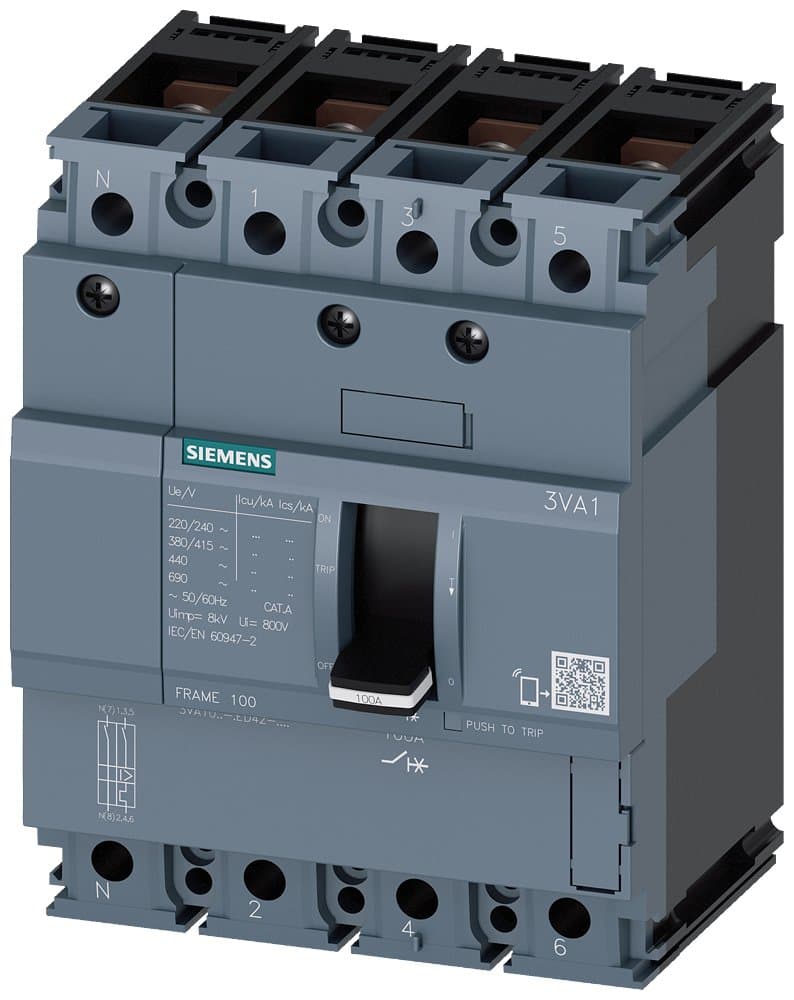

3VA1040-2ED42-0AA0
Key Features
- 1High breaking capacity of 16 kA at 415 V for 4-pole protection.
- 2Equipped with a thermal-magnetic trip unit for precise overload protection.
- 3IEC Frame 100 design for robust and reliable performance.
- 4Line protection features including TM210 and FTFM for enhanced safety.
- 5Suitable for various industrial applications requiring high reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 16 | Rated Voltage(V): | 690 |
| Number of Poles: | 4P | Description | 3VA1B100 R40 TM210 F/4P; 3VA1_100 dimensions; Rated current 40A; Interrupting rating B:16kA; Trip unit TM210; |
| Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210 [LI fixed, line protection] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 16 | Interrupting Rating: | B:16kA |
| Rated Current In(A): | 40 | Specifications: | 100 [16-100A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VA1040-2ED42-0AA0 |
Specifications may be subject to change without notice
