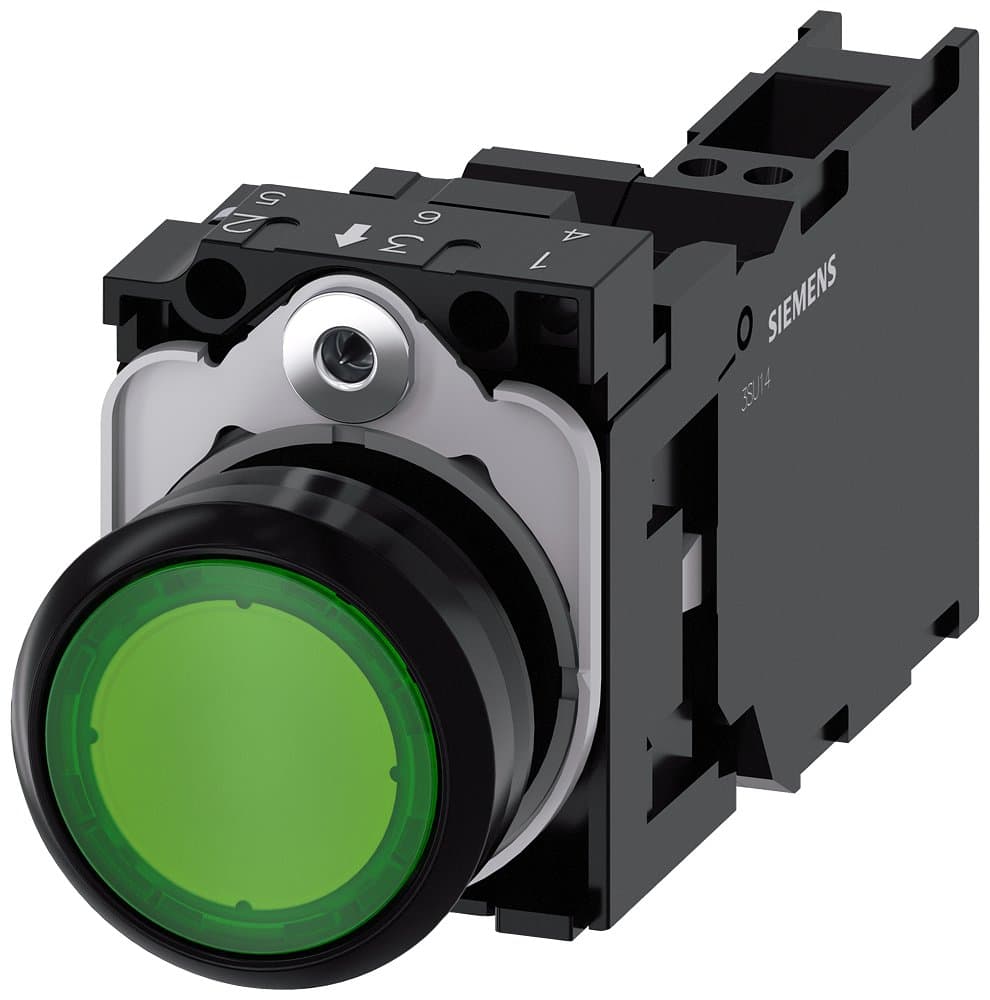

Product Model
3SU1106-0AB40-3FA0-ZY19
Key Features
- 1Built with high-grade plastic and designed for harsh environments with IP66, IP67, and IP69K ratings.
- 2Features a momentary contact type with 1 NO and 1 NC contact configuration for precise control.
- 3Includes an integrated LED module with 230 V AC supply voltage for clear illumination.
- 4Withstands high temperatures up to +70°C and operates within a wide temperature range of -25°C to +70°C.
- 5Compatible with various mounting options and features spring-loaded terminals for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Head Protection Rating | IP66, IP67, IP69K | Terminal Protection Rating | IP20 |
| Wiring Capacity | 2*(0.25-1.5 square millimeters) | Mechanical Life | 3,000,000 |
| Operating Temperature Range | -25~+70℃ | Contact Rated Operating Current | 10A (AC-12 230V), 6A (AC-15 230V) |
| Rated Insulation Voltage | 500V | Others | ZY19【Any label or symbol in compliance with equipment requirements】 |
| Wiring Method | Cage Clamp Connection | Operating Voltage | 220V AC |
| Illumination Type | LED | Auxiliary Contacts | 1NO1NC |
| Diameter | Bore Diameter 22mm | Color | Green |
| Housing Material | Plastic | Operation Type | Instantaneous |
| Button Type | Illuminated Flat Head Button | Type | Complete Button Set |
| Product Type | Illuminated Flat Head Button | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | EAR99 |
| AL | N | Model Number | 3SU1106-0AB40-3FA0-ZY19 |
Specifications may be subject to change without notice
