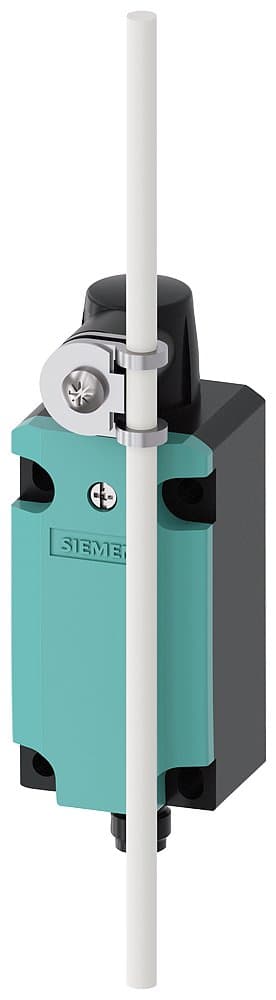

Product Model
3SE5114-0NH82-1AM2
Key Features
- 1Made from durable plastic and zinc die-casting for increased corrosion protection.
- 2Integrated ASIsafe technology for enhanced safety in critical applications.
- 3Offers 1 NO + 1 NC and 1 NO + 2 NC configurations for various switching needs.
- 4Available in multiple enclosure sizes, including a 31 mm wide option, for easy installation.
- 5Meets international standards including CE, TÜV, UL, CSA, and CCC for global compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sensor Length | 281mm | Sensor Height | 49.8mm |
| Sensor Width | 40mm | Number of Transfer Contacts | 0 |
| Number of Make Contacts | 1 | Number of Break Contacts | 1 |
| Rated Operating Current Ie (DC-13, 24V) | 3A | Rated Operating Current Ie (AC-15, 24V) | 3A |
| Number of Safety-Related Auxiliary Contacts | 0 | Enclosure Material | Metal |
| Product Type | Single Position Limit Switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3SE5114-0NH82-1AM2 |
Specifications may be subject to change without notice
