Product Model

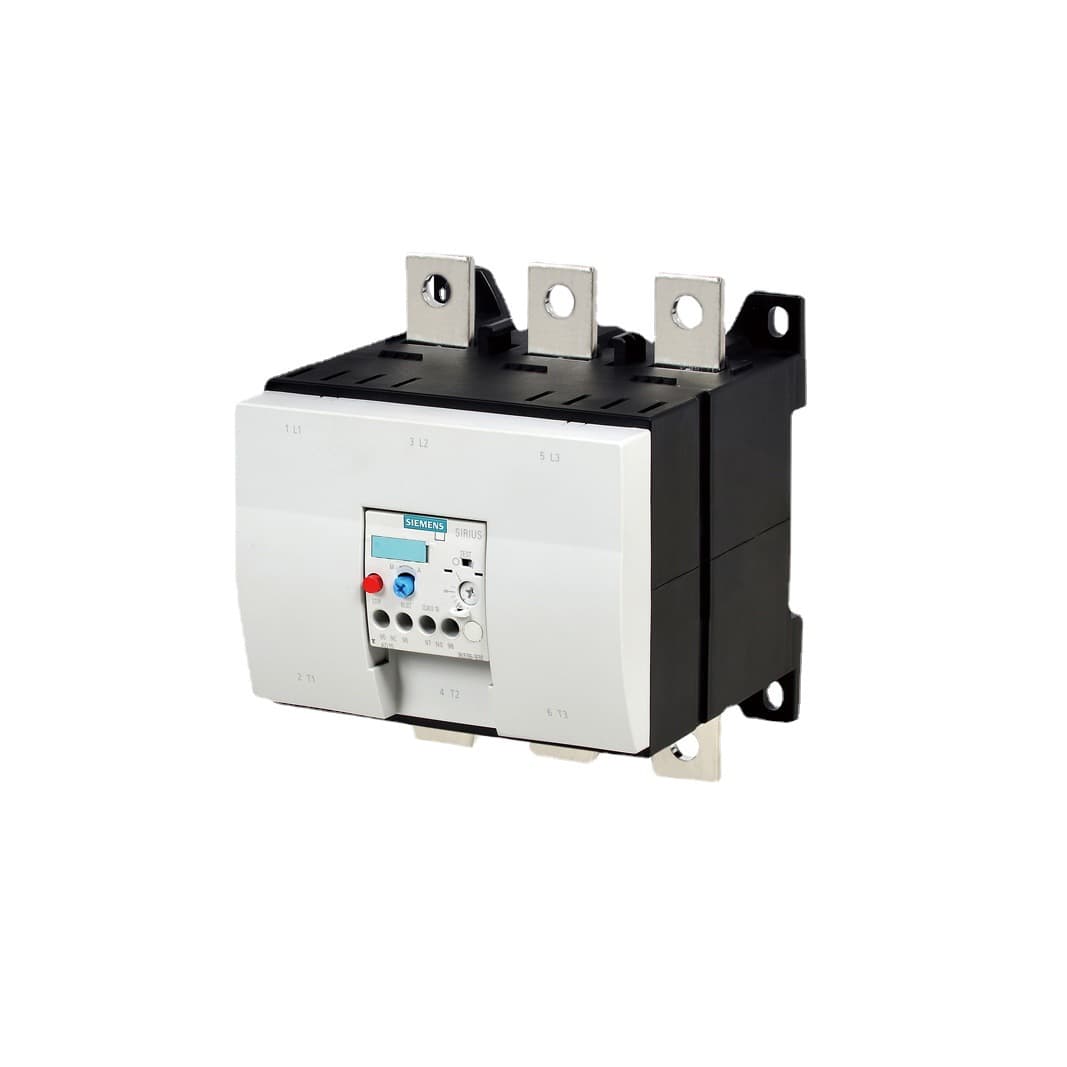

3RU5176-5JB1
Key Features
- 1High Current Capacity: Protects motors with currents ranging from 350 to 500 A.
- 2Class 10 Reliability: Ensures consistent and reliable operation in demanding environments.
- 3Single Mounting Design: Simplifies installation with a single mounting main circuit.
- 4Screw Terminal Connectivity: Easy setup and maintenance with screw terminal AUX circuits.
- 5Manual/Automatic Reset: Offers flexibility with manual or automatic reset options for added convenience.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Ambient Temperature | -40~+70°C | Operating Altitude | 2000m |
| Rated Voltage | AC400V | Installation Method | Screw Terminal Connection, Installed Individually |
| Specification | S12 | Load Class | Class 10 |
| Current Setting Range | 350-500A | Rated Current (AC-3) | Maximum 500A for S12 size |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3RU5176-5JB1 |
Specifications may be subject to change without notice
