Product Model

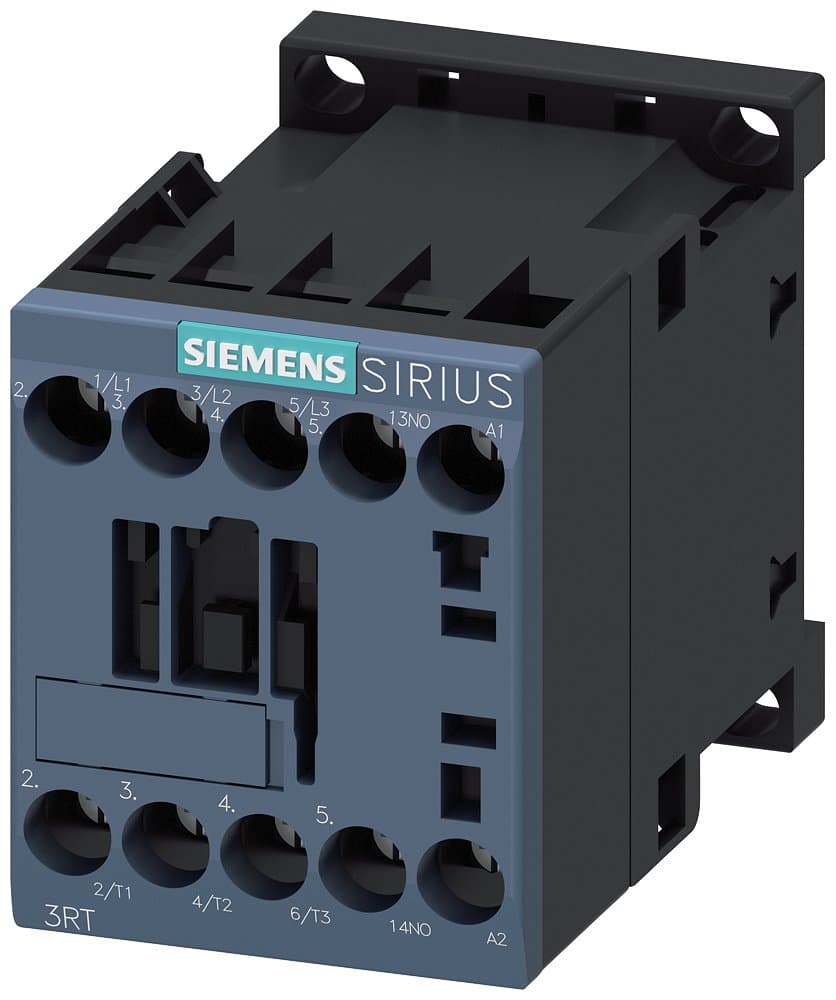

3RT6018-1AD01
Key Features
- 1High Voltage Compatibility: Compatible with 400 V AC, ensuring robust performance in demanding environments.
- 2Wide Frequency Range: Operates at 50/60 Hz, accommodating diverse electrical systems.
- 3Advanced Safety Features: Meets AC3 standards, providing enhanced safety and reliability.
- 4Easy Installation: Features screw terminals for straightforward installation and maintenance.
- 5Compliance with Regulations: Conforms to RoHS and WEEE directives, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Form | 3NO | Mechanical Life | 30 million operations (without auxiliary contacts on the main contactor) |
| Operating Temperature Range | -25~+60℃ | Auxiliary Contacts | 1NO |
| Coil Voltage | AD0 | Coil Power Supply | 50/60Hz |
| Coil Frequency | AC | Number of Poles | 3P |
| Specification | S00 | Rated Current AC-3 | 16A |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3RT6018-1AD01 |
Specifications may be subject to change without notice
