Product Model

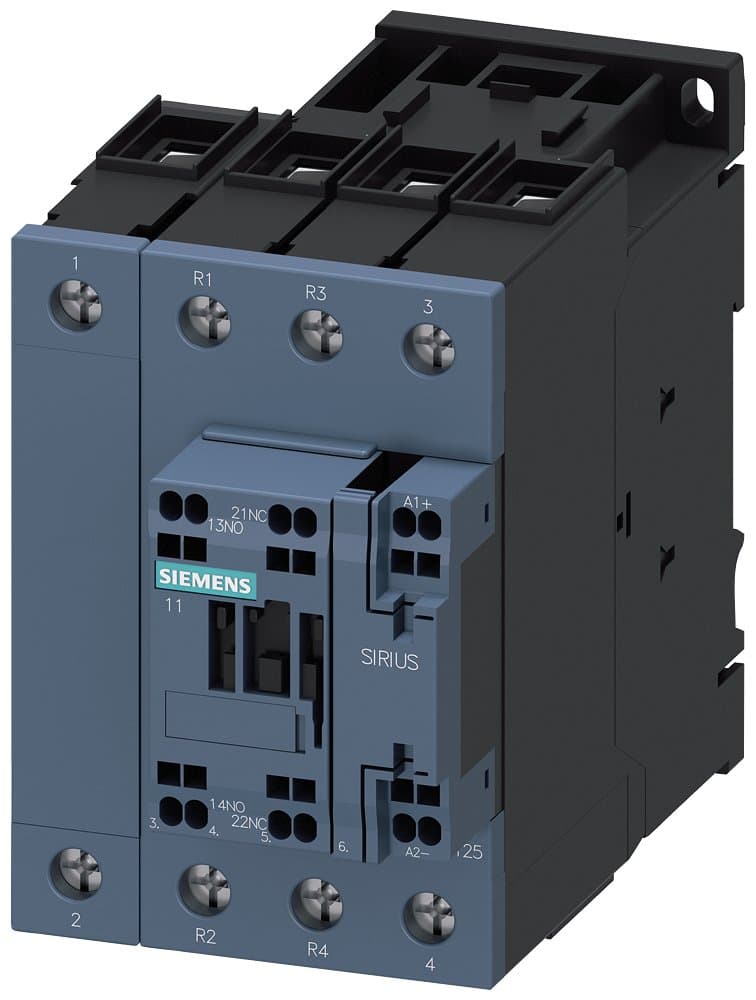

3RT2535-3XF40-0LA2
Key Features
- 1High operational currents up to 690 V.
- 2Robust design for vertical mounting surfaces.
- 3Compatible with AC, DC, and AC/DC operations.
- 4Integrated auxiliary switches for enhanced functionality.
- 5Long-lasting with 10 million operating cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Contact Configuration | 2NO+2NC | Wiring Method | Screw Terminal |
| Auxiliary Contacts | 1NO1NC | Coil Frequency | DC |
| Coil Power Supply | DC | Number of Poles | 4P |
| Rated Current AC-3 | AC-1 60A | Specification | S2 |
| Product Type | 4-pole Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3RT2535-3XF40-0LA2 |
Specifications may be subject to change without notice
