Product Model

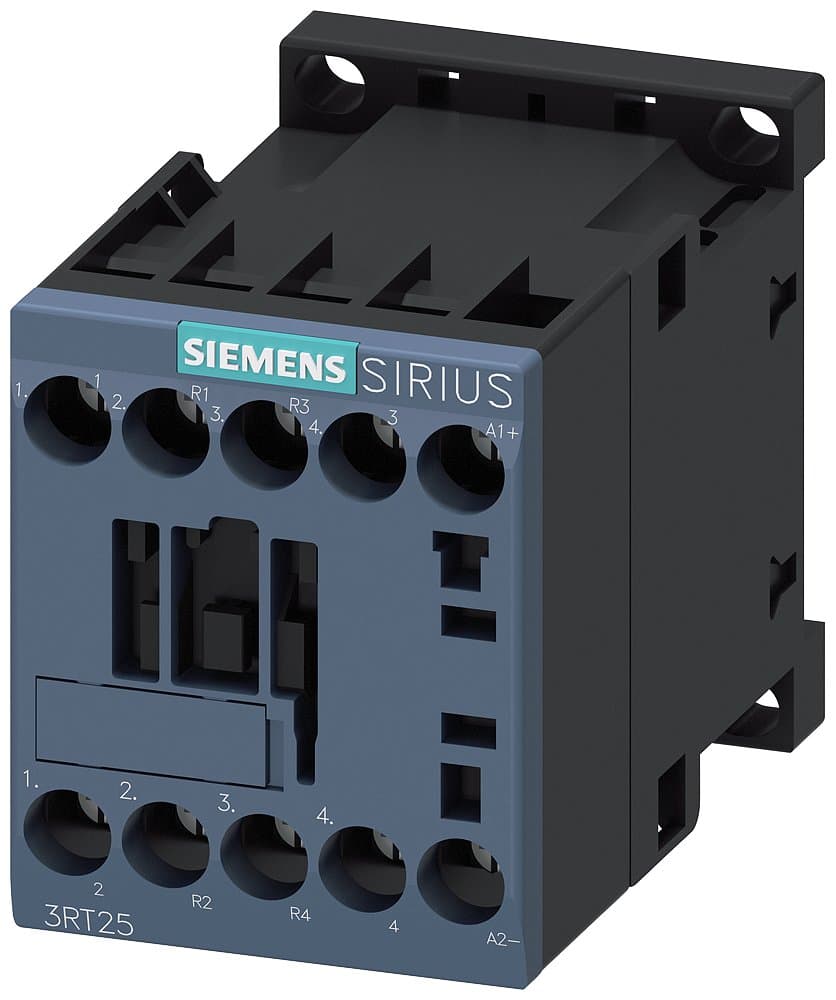

3RT2516-1XF40-0LA2
Key Features
- 1High-performance AC-3 rated for 9A at 400V.
- 2Integrated varistor for enhanced surge protection.
- 3Electronic drive with low switch-on and holding power.
- 4Main contacts: 2 NO + 2 NC, screw terminal connections.
- 5Compact size S00 with versatile mounting options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 2NO+2NC | Wiring Method | Screw Terminal |
| Auxiliary Contacts | None | Coil Frequency | DC |
| Coil Power Supply | DC | Number of Poles | 4P |
| Rated Current AC-3 | 9A | Specification | S00 |
| Product Type | Four-pole Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3RT2516-1XF40-0LA2 |
Specifications may be subject to change without notice
