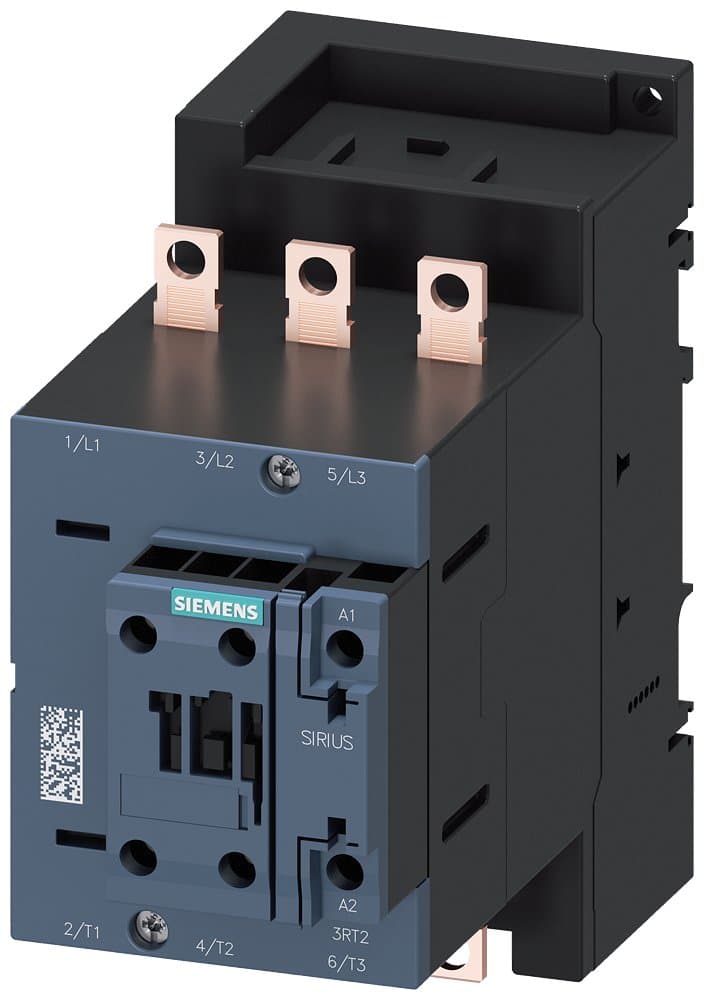

Product Model
3RT2448-6KB40-0KS0
Key Features
- 1Handles 160 A at 690 V for reliable AC-1 applications.
- 2Provides surge protection for enhanced system reliability.
- 3Mountable on DIN rail with +/-180° rotation and +/-22.5° tilt.
- 4Includes 1 NO and 1 NC auxiliary contacts for comprehensive control.
- 5Meets S3 size specifications with a robust mechanical service life of 10 million operating cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 3NO | Auxiliary Contacts | 1NO1NC |
| Coil Frequency | DC | Coil Power Supply | DC |
| Number of Poles | 3P | Rated Current AC-3 | AC-1 160A |
| Rating | S3 | Product Type | Contactor |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3RT2448-6KB40-0KS0 |
Specifications may be subject to change without notice
