Product Model

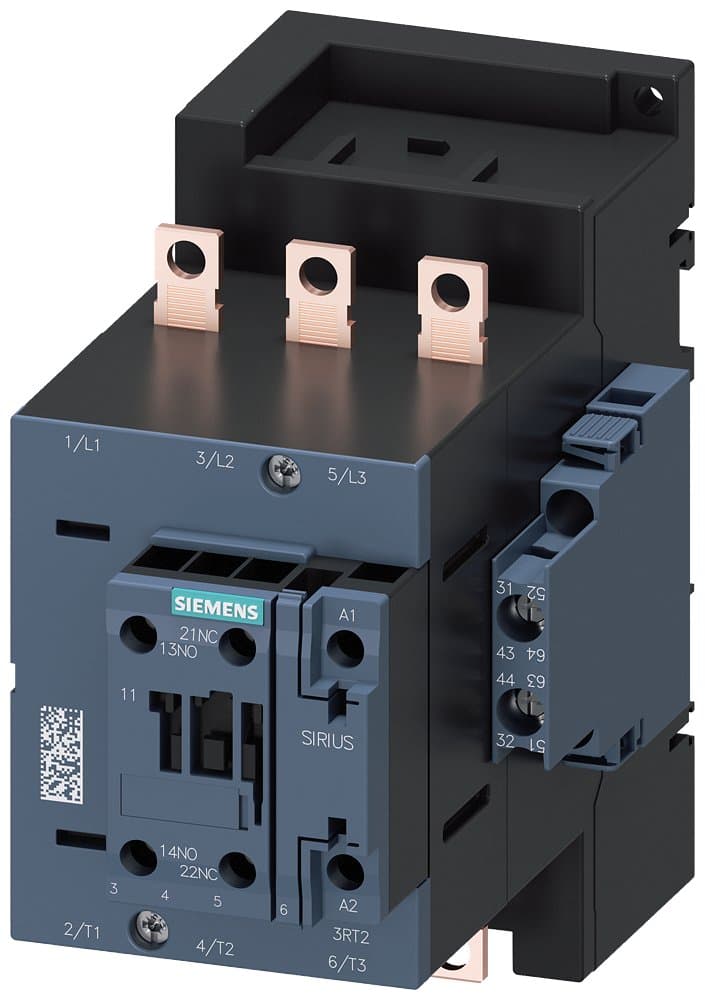

3RT2446-6AV66
Key Features
- 1High current rating: 140 A at 690 V AC.
- 2Robust design with IP20 protection and finger-safe operation.
- 3Advanced safety features including surge voltage resistance up to 8 kV.
- 4Long mechanical service life with up to 10 million switching cycles.
- 5Versatile mounting options with +/-180° rotation and screw/snap-on connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 3NO | Auxiliary Contacts | 2NO2NC |
| Coil Frequency | 60HZ | Coil Power Supply | AC |
| Number of Poles | 3P | Rated Current AC-3 | AC-1 140A |
| Rating | S3 | Product Type | Contactor |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3RT2446-6AV66 |
Specifications may be subject to change without notice
