Product Model

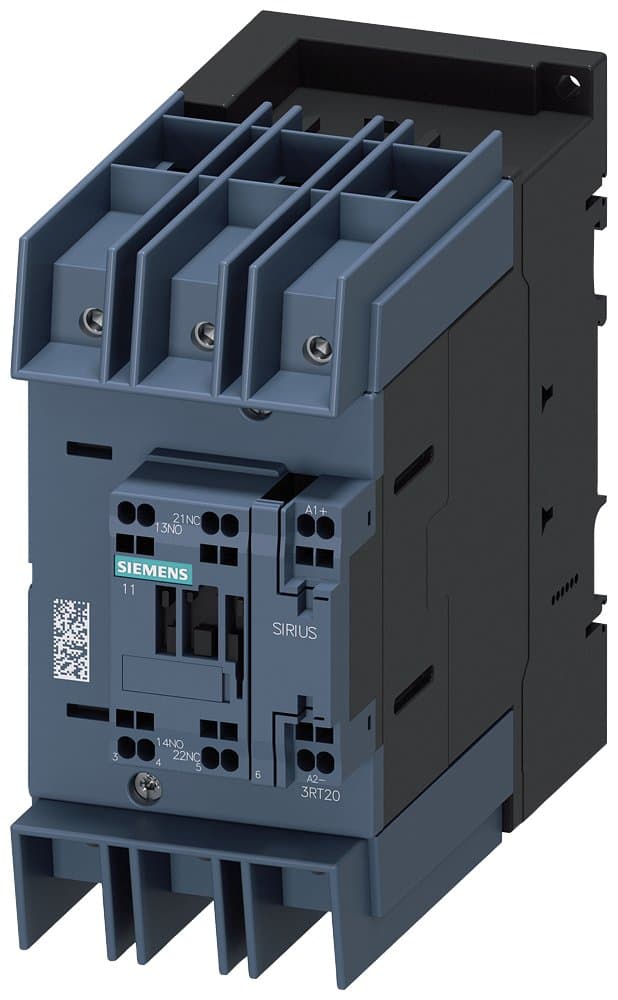

3RT2045-3KB40-0VT0
Key Features
- 1High performance in AC-3 and AC-3e applications with 80 A and 37 kW at 400 V.
- 2Integrated varistor for surge voltage resistance up to 8 kV in the main circuit.
- 3Robust auxiliary circuit with 1 NO + 1 NC contacts and 690 V insulation voltage.
- 4Suitable for PLC outputs with spring-loaded terminals for control and auxiliary circuits.
- 5Durable with a mechanical service life of up to 10 million operating cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Main Contact Configuration | 3NO | Wiring Method | Screw Terminal |
| Auxiliary Contacts | 1NO1NC | Coil Frequency | DC |
| Coil Power Supply | DC | Number of Poles | 3P |
| Rated Current AC-3 | 80A | Rating | S3 |
| Product Type | Contactor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3RT2045-3KB40-0VT0 |
Specifications may be subject to change without notice
